Panduit FTD82-14-C | Pan-Term Twin wire ferrule, Yellow, PP, 14mm P...
Description
Description
Faster installation, secure connections, and multiple lengths for diverse terminal blocks with our twin wire ferrule with end sleeve, easily connect stranded wires in tight spaces.

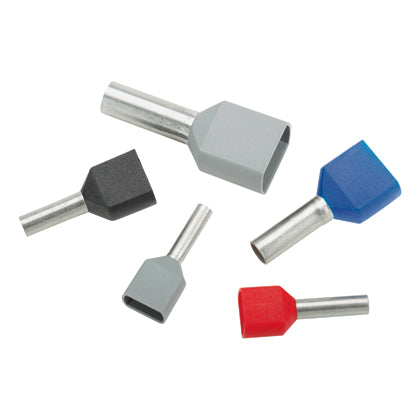

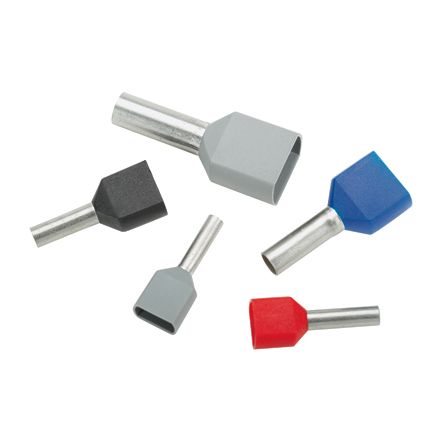

The FTD82-14-C Pan-Term Ferrule is a covered, twin-wire ferrule end sleeve. Designed with a seamless barrel to contain loose wire strands for superior terminations. Plastic covering flare allows for faster and easier wire insertion to lower installed c ost. Eases insertion of wire into the terminal block and is suitable for limited space panel applications.
Panduit Pan-Term ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.
Panduit Pan-Term Ferrule, Type FTD Insulated Twin, Stranded Conductor, 10 AWG Conductor, 0.98 in Length, Seamless Barrel, 0.38 in OD Barrel, 3/4 in L Wire Strip, 0.19 in Dia Maximum Wire Insulation, Polypropylene Insulation, 221 deg F, Copper, Tin Plated, Yellow
Panduit - FTD82-14-C - Features
- Polypropylene insulation housing
- Meets DIN standards for twin wire containment
- Funnel entry for faster insertion and lower installed cost
- Designed with a seamless barrel to contain loose wire strands for superior terminations
- Meets DIN standards for twin wire containment
- Polypropylene insulation housing conforms to DIN color requirements
- Funnel entry for faster insertion and lower installed cost
- Designed with a seamless barrel to contain loose wire strands for superior terminations
- Eases insertion of wire into terminal block
- Suitable for limited space panel applications
- Multiple pin lengths available for a variety of terminal blocks
Specifications
Specifications
Panduit - FTD82-14-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FTD82-14-C |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Ferrule Type | Twin Wire |
| Cover Material | Polypropylene |
| Copper Conductor Size (AWG) | 10 |
| Maximum Copper Conductor Size (AWG) | 10 |
| Minimum Copper Conductor Size (AWG) | #10 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 6 |
| UL Temperature Rating (°C) | 105 |
| CSA Temperature Rating (°C) | 105 |
| Flammability Rating | UL94-HB |
| Wire Strip Length (In.) | 3/4 |
| Wire Strip Length (mm) | 19 |
| Pin Length (In.) | 0.55 |
| Pin Length (mm) | 14 |
| Inside Diameter (In.) | 0.18 |
| Inside Diameter (mm) | 4.6 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Minimum Operating Temperature (°C) | -54 |
| Minimum Operating Temperature (°F) | -60 |
| Maximum Wire Insulation Diameter (In.) | 0.19 |
| UPC | 07498376315 |
