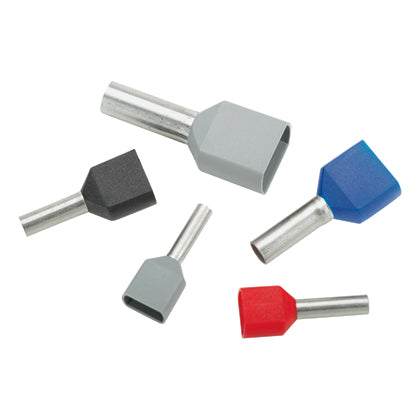

Panduit FTD83-14-C | Insulated twin wire ferrules | UPC - 07498333394
Description
Description
Panduit Pan-Term ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.
Panduit Pan-Term Ferrule, Type FTD Insulated Twin, Stranded Conductor, 8 AWG Conductor, 1.02 in Length, Seamless Barrel, 1/2 in OD Barrel, 3/4 in L Wire Strip, 0.28 in Dia Maximum Wire Insulation, Polypropylene Insulation, 221 deg F, Copper, Tin Plated, Red
Features + Benefits
- Polypropylene insulation housing
- Designed specifically for use with the ferrule applicator SCA-712022002 (CA10) for high volume applications
- Continuously molded design provides consistent placement of ferrules in applicator to ensure fast, reliable terminations
Panduit FTD83-14-C Key Specs
| Insulation Material | Polypropylene |
| Flammability Rating | UL 94 HB |
| Wire Strip Length (In.) | 0.75 |
| Wire Strip Length (mm) | 19 |
| Pin Length (In.) | 0.55 |
| Pin Length (mm) | 14 |
| Insulation Type | Polypropylene |
| Insulation Diameter (In.) | 0.28 |
| Insulation Diameter (mm) | 7.1 |
| Inside Diameter (In.) | 0.26 |
| Inside Diameter (mm) | 6.5 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.28 |
| Maximum Wire Insulation Diameter (mm) | 7.1 |
| Overall Length (In.) | 1.02 |
| Overall Length (mm) | 26 |
Panduit FTD83-14-C Data Sheets
| Product Bulletins | OptiCam 2 Termination Tool | Download and View |
| Manuals | OptiCam2FS133Termination ToolUserManual | Download and View |
| Part Drawings | OptiCam SC2 Connector | Download and View |
