Brand: Panduit
|
SKU:
FTD84-16-C

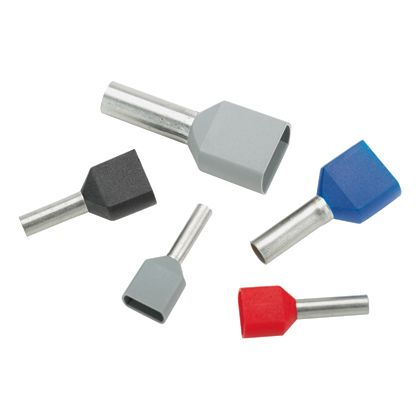

Panduit FTD84-16-C | Pan-Term FTD84-16-C Covered twin wire ferrule
Regular price
$166.56
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FTD84-16-C | Pan-Term FTD84-16-C Covered twin wire ferrule
Regular price
$166.56
Unit price
Description
Description
Panduit FTD84-16-C | Pan-Term FTD84-16-C Covered twin wire ferrule
Polypropylene insulated ferrules twin wire blue DIN color end sleeve, 6 AWG (16.0mm²), 0.63(16.0mm) pin length,bulk package.
Specifications
Specifications
Panduit - FTD84-16-C - Product Categories
- Wire Termination
- Ferrules
Panduit - FTD84-16-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FTD84-16-C |
| Item Description | Pan-Term FTD84-16-C Covered twin wire ferrule |
| Ferrule Type | Twin Wire |
| Cover Material | Polypropylene |
| Copper Conductor Size (AWG) | #6 |
| Maximum Copper Conductor Size (AWG) | #6 |
| Maximum Metric Conductor Size (mm²) | 16 |
| Minimum Copper Conductor Size (AWG) | #6 |
| UL Temperature Rating (°C) | 105 |
| CSA Temperature Rating (°C) | 105 |
| Flammability Rating | UL94-HB |
| Wire Strip Length (In.) | 0.83 |
| Wire Strip Length (mm) | 21 |
| Pin Length (In.) | 0.63 |
| Pin Length (mm) | 16 |
| Inside Diameter (In.) | 0.33 |
| Inside Diameter (mm) | 8.5 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.35 |
| Maximum Wire Insulation Diameter (mm) | 8.9 |
| Outer Diameter (In.) | 0.35 |
| Outer Diameter (mm) | 8.9 |
| Overall Length (In.) | 1.22 |
| Overall Length (mm) | 31 |
| Product Type | Covered Twin Wire Ferrule |
| Standards Met | DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F |
| Finish/Coating | Tin-Plated |
| For Use With | CT-1005 |
| Packaging Type | Bag |
| Base Material | Copper |
| Color Code | Blue |
| Sub Brand | Pan-Term |
| Part Features | Twin Wire Polypropylene insulation housing conforms to DIN color requirements Meets DIN, UL and CSA standards for twin wire containment Funnel entry for faster insertion and lower installed cost Designed with a seamless barrel to contain loose wire strands for superior terminations Eases insertion of wire into terminal block Suitable for limited space panel applications Multiple pin lengths available for a variety of terminal blocks |
Brand Name - FTD84-16-C - Package Information
| UPC | 07498333395 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0297 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
