Panduit FTR2X2LYL | FiberRunner Bend Radius Control Trumpet, 2x2, Y...
Regular price
$74.41
Unit price
Brand: Panduit
|
SKU:
10057540
Regular price
$74.41
Unit price
Description
Description

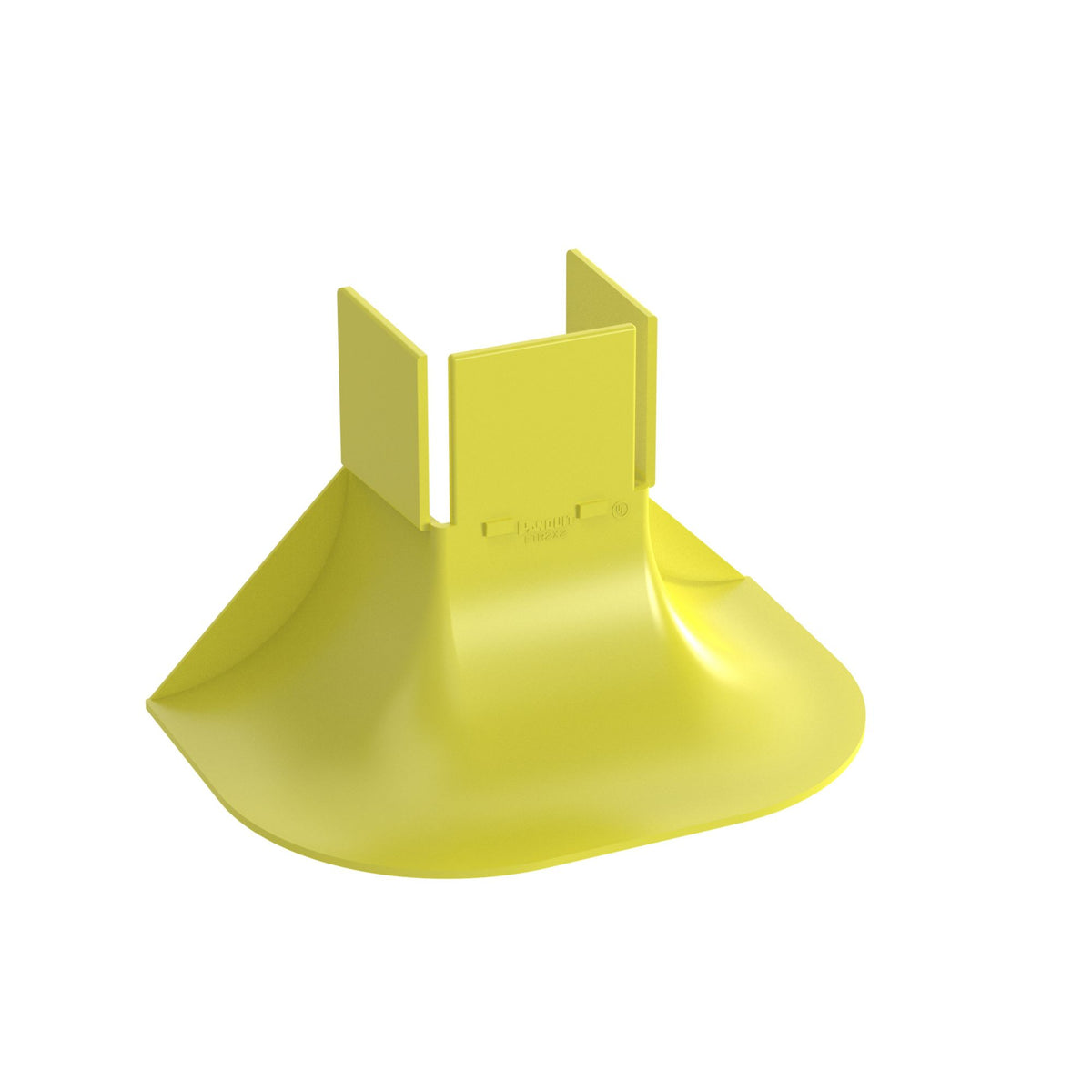

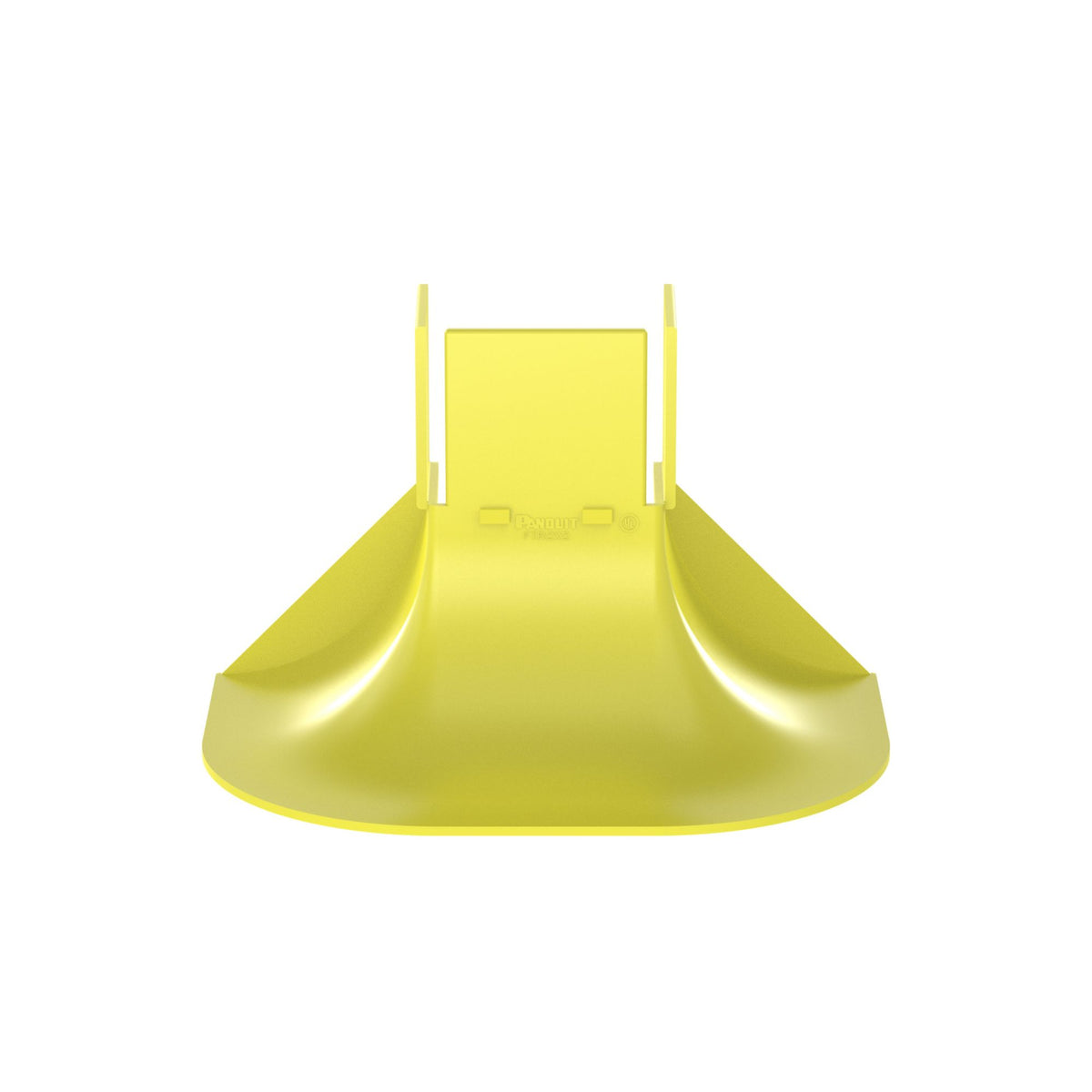

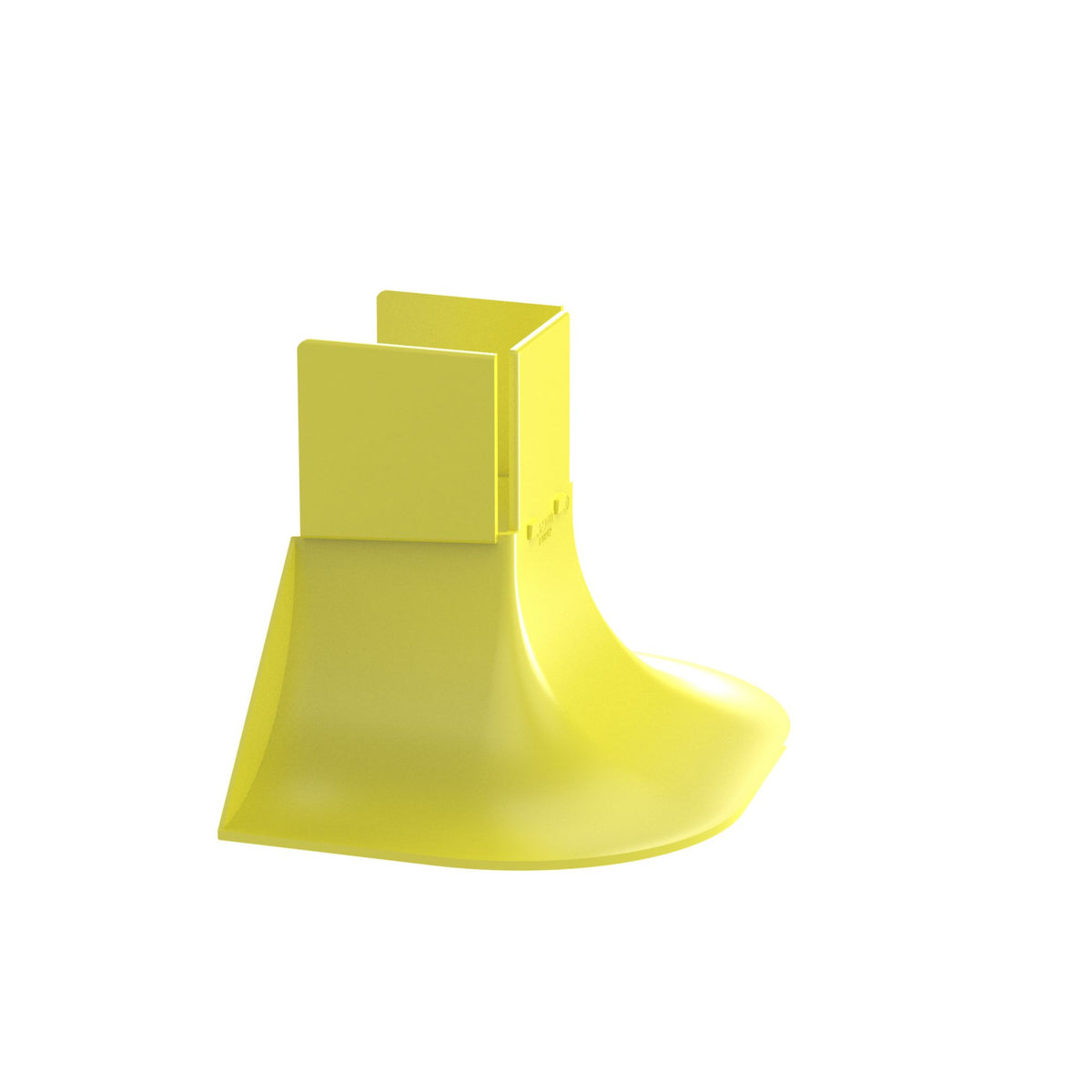

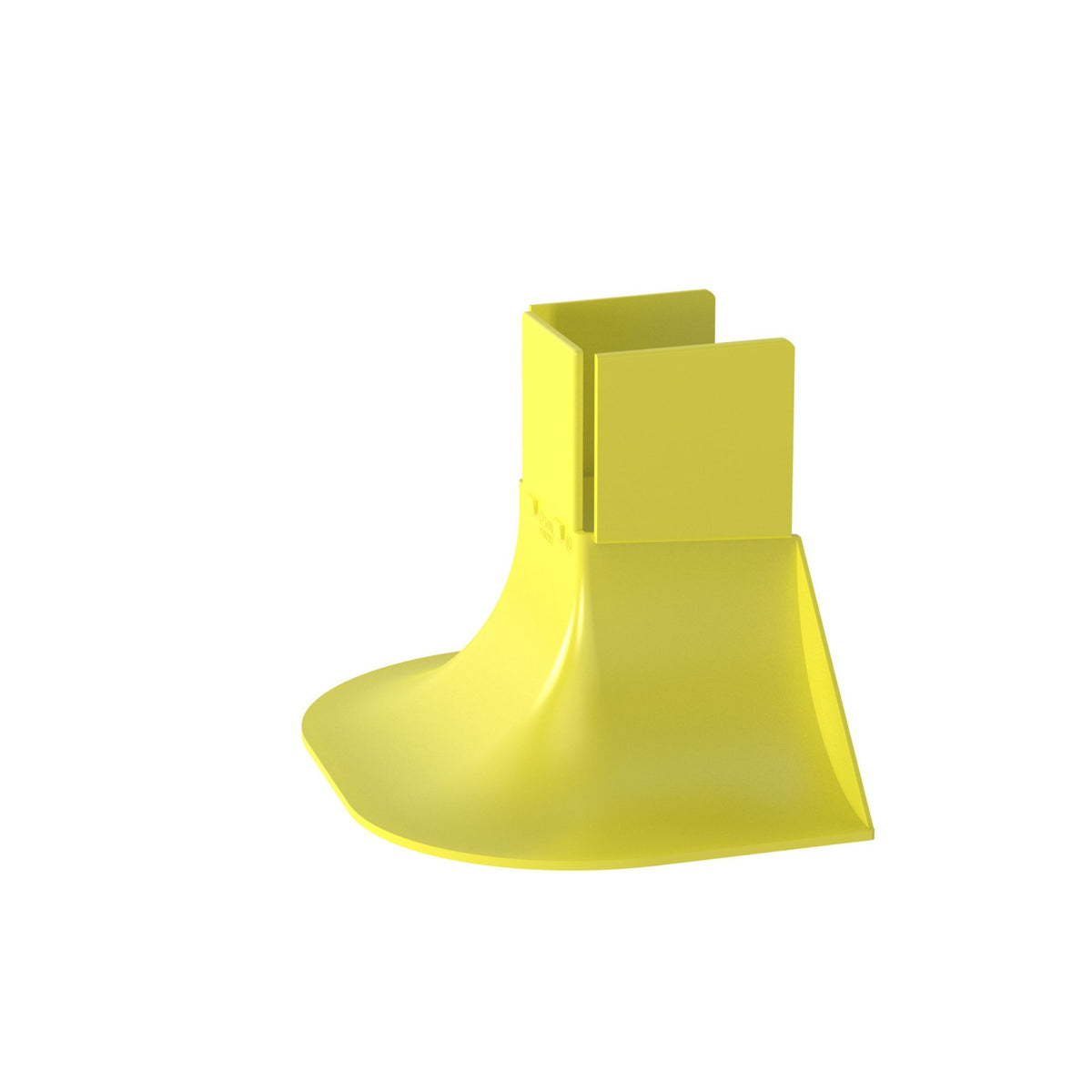

Panduit FTR2X2LYL | FiberRunner Bend Radius Control Trumpet, 2x2, Yellow
The FiberRunner Bend Radius Control Trumpet is used to limit the bend radius of the cable to 2 inches (50.8mm) when exiting from the 2x2 channel or a 2x2 horizontal tee.
Panduit FTR2X2LYL Fitting, 3-sided Brc Trumpetspillout For 2"x2" Lszh(50mmx50mm) Exit, Yl
Specifications
Specifications
Panduit - FTR2X2LYL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Spillouts
Panduit - FTR2X2LYL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FTR2X2LYL |
| Item Description | FiberRunner Bend Radius Control Trumpet, 2x2, Yellow |
| Application | Data Centers and Telco Central Offices |
| Product Type | Trumpet |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| For Use With | 2x2 FiberRunner |
| Includes | (1) Trumpet |
| Material | PC/ABS |
| Overall Height (In.) | 3.85 |
| Overall Height (mm) | 97.8 |
| Overall Length (In.) | 3.85 |
| Overall Length (mm) | 97.8 |
| Overall Width (In.) | 6 |
| Overall Width (mm) | 152.4 |
| Standards Met | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 2x2 |
| Color | Yellow |
| Components | SPILLOUTS / DOWNSPOUTS |
| Finish | YELLOW |
| Material | PLASTIC |
| Type | CABLE ROUTING / WIRING DUCT |
| UNSPSC Code | 39131712 |
Panduit - FTR2X2LYL - Package Information
| UPC | 61305676851 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0947 |
| Standard Ctn. Quantity | 5 |
| Standard Ctn. Volume (cf) | 0.4735 |
Panduit - FTR2X2LYL - Videos
| Video 1 | Click to View |
|---|
