Brand: Panduit
|
SKU:
228075

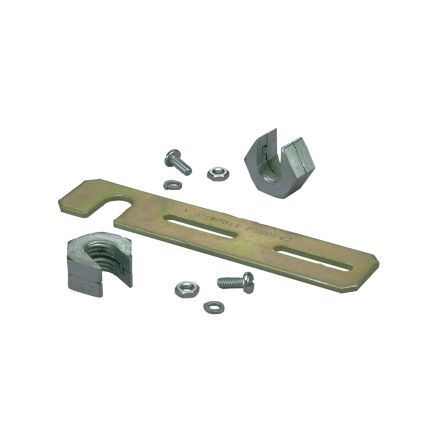

Panduit FTRBE58 Bracket, Existing 5/8"; Threaded Rod for 2";x 2"; And 4"; x 4"; Fiber-Duct
Regular price
$52.73
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FTRBE58 Bracket, Existing 5/8"; Threaded Rod for 2&quo...
Regular price
$52.73
Unit price
Description
Description
Panduit FTRBE58 | FIBER-DUCT EXISTING THREADED ROD, FOR 5/8" THREADED ROD
Used for supporting the 2x2 and 4x4 Fiber-Duct Systems from existing threaded rod installations. Bracket is secured to threaded rod with two split nuts. Contains hardware for attaching to threaded rods and hardware for mounting channel to bracket. For 5/8" Threaded Rod.
Specifications
Specifications
Panduit - FTRBE58 - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Mounting Brackets & Hardware
Panduit - FTRBE58 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FTRBE58 |
| Item Description | FIBER-DUCT EXISTING THREADED ROD, FOR 5/8" THREADED ROD |
| Application | (1) The Fiber-Duct 2X2 and 4X4 Routing Systems are Comprised of Channel, Fittings, and Brackets Designed to Segregate, Route, and Protect Fiber Optic Cable and Copper Cabling. (2) it is Suited for Data Center Applications. |
| Product Type | Existing Threaded Rod |
| Sub Brand | Fiber-Duct |
| Color | Black |
| For Use With | 2x2 and 4x4 Fiber-Duct Systems |
| Includes | (1) Bracket, (2) #10-32x5/8 Pan Head Screws with Lockwashers and Hex Nuts, (2) 5/8 inch Split Nuts |
| Material | Steel |
| Number of Pieces | 5 |
| Overall Height (In.) | 1.25 |
| Overall Height (mm) | 31.8 |
| Overall Length (In.) | 6 |
| Overall Length (mm) | 152.4 |
| Overall Width (In.) | 6 |
| Overall Width (mm) | 152.4 |
| Standards Met | UL Listed To 2024 Optical Fiber Cable Routing Assemblies, UL Recognized (File No. E147128) Slotted Wall, CSA Certified (File No. 016446 0 000) Slotted Wall, LP-CSISPEC-FD-1 |
| System Dimensions | 2x2, 4x4 |
| Angle | 90° |
| Compatible Threaded Rod Size (In.) | 0.63 |
| Compatible Threaded Rod Size (mm) | 15.9 |
| Series Type | 2 x 2 and 4 x 4 Fiber-Duct Brackets |
| Part Features | Fastest installations, easy to maintain, system strength, versatility, Cable protection. |
Panduit - FTRBE58 - Package Information
| UPC | 07498362531 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0185 |
| Standard. Ctn. Quantity | 10 |
| Standard. Ctn. Volume (cf) | 0.1850 |
