Brand: Panduit
|
SKU:
228067

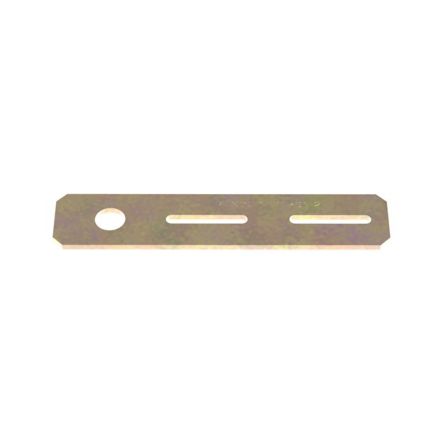

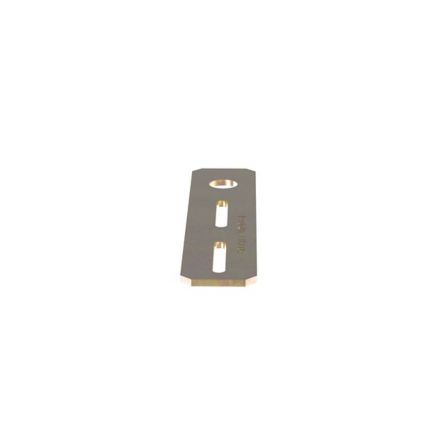

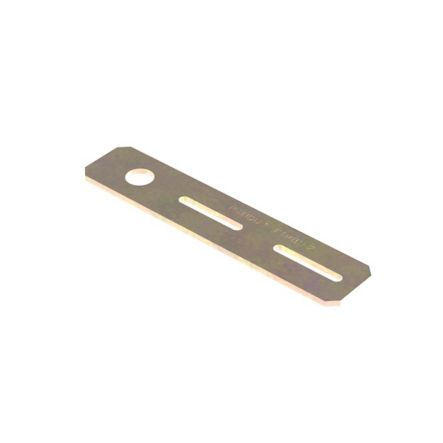

Panduit FTRBN12 Bracket, New 1/2"; Threaded Rod for 2";x 2"; And 4"; x 4"; Fiber-Duct
Regular price
$23.72
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FTRBN12 Bracket, New 1/2"; Threaded Rod for 2";x ...
Regular price
$23.72
Unit price
Description
Description
Panduit FTRBN12 | FiberRunner New Threaded Rod Bracket
The FiberRunner New Threaded Rod Bracket is used to support the 2x2 and 4x4 FiberRunner Systems from new threaded rod installations. It is designed to be used for a 0.50 inch threaded rod. The new threaded rod bracket includes hardware to attach the threaded rod as well as hardware for mounting the channel to the bracket.
Specifications
Specifications
Panduit - FTRBN12 - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Mounting Brackets & Hardware
Panduit - FTRBN12 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FTRBN12 |
| Item Description | FiberRunner New Threaded Rod Bracket |
| Application | (1) The Fiber-Duct 2X2 and 4X4 Routing Systems are Comprised of Channel, Fittings, and Brackets Designed to Segregate, Route, and Protect Fiber Optic Cable and Copper Cabling. (2) it is Suited for Data Center Applications. |
| Product Type | New Threaded Rod |
| Sub Brand | FiberRunner |
| Color | Black |
| For Use With | 2x2 and 4x4 Fiber-Runner Systems |
| Includes | (1) Bracket, (2) 1/2-13 Heavy Hex Nuts, (2) 1/2 inch Helical Spring Lockwashers, (2) #10-32x1/2 Pan Head Slotted Machine Screws, (2) #10-32 Hex Machine Screw Nuts, (2) #10 Helical Spring Lockwashers.(2) #10-32 HEX MACHINE SCREW NUTS,(2) #10 HELICAL SPRI |
| Material | Steel |
| Number of Pieces | 11 |
| Overall Height (In.) | 1.25 |
| Overall Height (mm) | 31.8 |
| Overall Length (In.) | 0.12 |
| Overall Length (mm) | 3 |
| Overall Width (In.) | 6 |
| Overall Width (mm) | 152.4 |
| Standards Met | UL Listed to 2024 Optical Fiber Cable Routing Assemblies Compliant with the Applicable Tests in Telcordia Gr-63-Core Network Equipment Building Systems Level 3, LP-CSISPEC-FR |
| System Dimensions | 2x2, 4x4 |
| Compatible Threaded Rod Size (In.) | 0.5 |
| Compatible Threaded Rod Size (mm) | 12 |
| Series Type | 2 x 2 and 4 x 4 Fiber-Duct Brackets |
| Part Features | Fastest installations, easy to maintain, system strength, versatility, Cable protection. |
Panduit - FTRBN12 - Package Information
| UPC | 07498362532 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0175 |
| Standard. Ctn. Quantity | 10 |
| Standard. Ctn. Volume (cf) | 0.1748 |
