Brand: Panduit
|
SKU:
311861
Panduit FTRBN12M | Bracket, New 12mm Threaded Rod for 2";x 2"; And 4"; x 4"; Fiber-Duct
Regular price
$23.72
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FTRBN12M | Bracket, New 12mm Threaded Rod for 2";x 2&q...
Regular price
$23.72
Unit price
Description
Description

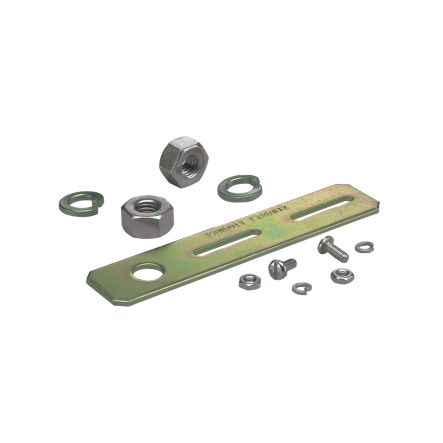

Panduit FTRBN12M | Fiber-Duct New Threaded Rod
Used for supporting the 2x2 and 4x4 Fiber-Duct Systems from new threaded rod installations. Bracket is secured to threaded rod with two nuts. Contains hardware for attaching to threaded rods and hardware for mounting channel to bracket. For 12mm Threaded Rod.
Specifications
Specifications
Panduit - FTRBN12M - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Mounting Brackets & Hardware
Panduit - FTRBN12M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FTRBN12M |
| Item Description | Fiber-Duct New Threaded Rod |
| Application | (1) The Fiber-Duct 2X2 and 4X4 Routing Systems are Comprised of Channel, Fittings, and Brackets Designed to Segregate, Route, and Protect Fiber Optic Cable and Copper Cabling. (2) it is Suited for Data Center Applications. |
| Product Type | New Threaded Rod |
| Sub Brand | Fiber-Duct |
| Color | Black |
| Finish/Coating | Yellow Zinc Dichromate |
| For Use With | 2x2 and 4x4 Fiber-Duct Systems |
| Includes | (1) Bracket, (2) 1/2 inch Helical Spring Lockwashers, (2) #10-32x1/2 Pan Head Slotted Machine Screws, (2) #10-32 Hex Machine Screw Nuts, (2) #10 Helical Spring Lockwashers, (2) M12x1.75 Hex Nuts (2) #10-32 HEX MACHINE SCREW NUTS, (2) #10 HELICAL SPRING L |
| Material | Steel |
| Number of Pieces | 11 |
| Overall Height (In.) | 1.25 |
| Overall Height (mm) | 31.8 |
| Overall Length (In.) | 0.12 |
| Overall Length (mm) | 3 |
| Overall Width (In.) | 6 |
| Overall Width (mm) | 152.4 |
| Standards Met | UL Listed To 2024A Optical Fiber Cable Routing Assemblies, UL Recognized (File No. E147128) Slotted Wall, CSA Certified (File No. 016446 0 000) Slotted Wall, LP-CSISPEC-FD-1 |
| System Dimensions | 2x2, 4x4 |
| Angle | 90° |
| Compatible Threaded Rod Size (In.) | 0.47 |
| Compatible Threaded Rod Size (mm) | 12 |
| Series Type | 2 x 2 and 4 x 4 Fiber-Duct Brackets |
| Part Features | Fastest installations, easy to maintain, system strength, versatility, Cable protection. |
Panduit - FTRBN12M - Package Information
| UPC | 07498375777 |
|---|---|
| Standard Pkg. Qty. | 1 |
| Standard Package Volume (cf) | 0.0175 |
| Standard Ctn. Qty. | 10 |
| Standard Ctn. Volume (cf) | 0.1755 |
