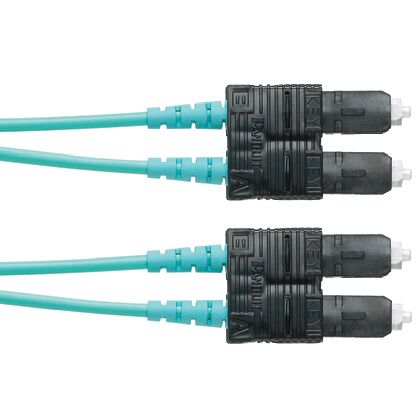

Panduit FX23PSNSNSNM003 | Fiber Optic Patch Cord
Description
Description
Fiber optic patch cords and pigtails provide interconnect and cross connect of applications over installations in entrance facilities, telecommunications rooms, data centers and at the desk. Patch cords support network applications in main, horizontal and equipment distribution areas and are available in riser (OFNR) and low smoke zero halogen (LSZH) rated jacket materials to comply with local cabling ordinances. Pre-terminated fiber optic pigtails support fusion splice field termination applications. Fiber optic patch cords and pigtails are available in OM4, OM3, OM2, OM1 or OS1/ OS2 fiber types to meet the demands of Gigabit Ethernet, 10 Gigabit Ethernet and high speed fiber channel.
Panduit Opti-Core Fiber Optic Patch Cord, Duplex OM3 Multi-Mode Plenum, 2 Fibers, 9.84 ft Length, SC to SC Connector, 50 um Core, 125 um Clad, Aqua Jacket, 0 to 60 deg C
Panduit - FX23PSNSNSNM003 - Features
- 1 in bend radius control fittings cables in the raceway will satisfy the minimum 1 in bend radius requirement, preventing the potential degradation of cable performance
- 1-piece hinged design cables can be laid into the raceway, speeding installation and preventing damage to cables
- Full selection of fittings and surface mount boxes wide variety of fittings and surface mount boxes available for various LD raceway applications
- Full length adhesive strip allows easy tool-free installation and works well for temporary mounting adhesive backing
- Supplied with pre-applied adhesive backed tape
- Designed to provide easy and economical solutions for routing any low voltage cable along smooth and clean perimeter walls, baseboards or ceilings and perfect solution
- 1-piece latching surface raceway
Specifications
Specifications
Panduit - FX23PSNSNSNM003 - Specifications
| Fiber Type | OM3 |
|---|---|
| Number of Fibers | 2 |
| Connector 1 Type | SC Duplex |
| Connector 2 Type | SC Duplex |
| Flammability Rating | Plenum |
| Overall Length (ft.) | 9.84 |
| Overall Length (m) | 3 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.12 |
| Outer Diameter (mm) | 3 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°F) | 32 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
| Standards Met | RoHS Compliant. |
| Body Style | Duplex |
| Product Type | Fiber Optic Patch Cord |
| Sub Brand | Opti-Core |
| UPC | 07498381564 |
Panduit - FX23PSNSNSNM003 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
