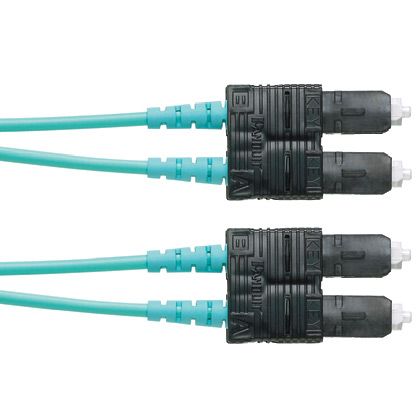

Panduit FX23PSNSNSNM004 | Fiber Optic Patch Cord
Description
Description
Fiber optic patch cords and pigtails provide interconnect and cross connect of applications over installations in entrance facilities, telecommunications rooms, data centers and at the desk. Patch cords support network applications in main, horizontal and equipment distribution areas and are available in riser (OFNR) and low smoke zero halogen (LSZH) rated jacket materials to comply with local cabling ordinances. Pre-terminated fiber optic pigtails support fusion splice field termination applications. Fiber optic patch cords and pigtails are available in OM4, OM3, OM2, OM1 or OS1/ OS2 fiber types to meet the demands of Gigabit Ethernet, 10 Gigabit Ethernet and high speed fiber channel.
Panduit Opti-Core Fiber Optic Patch Cord, Duplex OM3 Multi-Mode Plenum, 2 Fibers, 13.12 ft Length, SC to SC Connector, 50 um Core, 125 um Clad, Aqua Jacket, 0 to 60 deg C
Panduit - FX23PSNSNSNM004 - Features
- Assures flexibility and ease of network deployment and moves, adds and changes
- Easy identification of fiber type via adapter colors, visually compatible with patch cords and connectivity that also follows the color identification scheme
Specifications
Specifications
Panduit - FX23PSNSNSNM004 - Specifications
| Fiber Type | OM3 |
|---|---|
| Number of Fibers | 2 |
| Connector 1 Type | SC Duplex |
| Connector 2 Type | SC Duplex |
| Flammability Rating | Plenum |
| Overall Length (ft.) | 13.12 |
| Overall Length (m) | 4 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.12 |
| Outer Diameter (mm) | 3 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°F) | 32 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
| Standards Met | RoHS Compliant. |
| Body Style | Duplex |
| Product Type | Fiber Optic Patch Cord |
| Sub Brand | Opti-Core |
| UPC | 07498381565 |
Panduit - FX23PSNSNSNM004 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
