Panduit FX2ELLNLNSNM001 | Opti-Core LC Patch Cord
Regular price
$56.14
Unit price
Brand: Panduit
|
SKU:
585734
Regular price
$56.14
Unit price
Description
Description

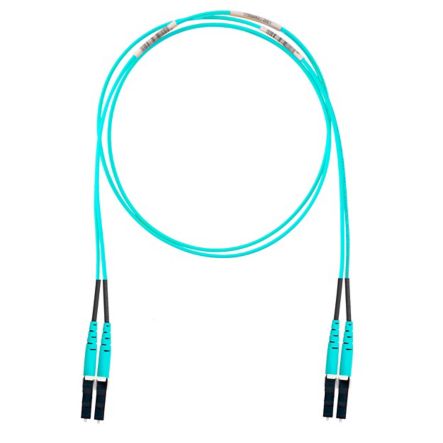

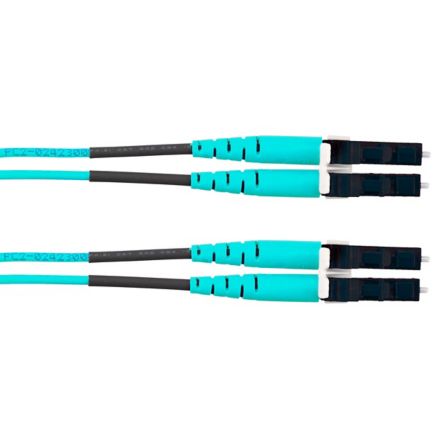

Panduit FX2ELLNLNSNM001 | Opti-Core LC Patch Cord
The duplex fiber patch cord is OM3 with a 1.6mm jacket. It is Low Smoke Zero Halogen (LSZH) rated and features LC Duplex connectors. It has standard insertion loss and is 1 meter in length.
Panduit FX2ELLNLNSNM001 Opti-core Fiber Patch cord, Om3 2-fiber, 1.6mm Jacket, Lszh, Lc-lc Duplex, Aqua, 1m
Specifications
Specifications
Panduit - FX2ELLNLNSNM001 - Product Categories
- Fiber Optic Systems
- Fiber Optic Interconnects, Patch Cords & Pigtails
Panduit - FX2ELLNLNSNM001 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FX2ELLNLNSNM001 |
| Item Description | Opti-Core LC Patch Cord |
| Fiber Type | OM3 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | LC Duplex |
| Sub Brand | Opti-Core |
| Flammability Rating | LSZH |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.0629921 |
| Outer Diameter (mm) | 1.6 |
| Overall Length (ft.) | 3.2 |
| Overall Length (m) | 1 |
| Cable Color | Aqua |
| Product Type | LC Patch Cord |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10) |
| Connector Type | LC - LC |
| Fiber Type | OM3 |
| Length | 1 M | 3.28 FT. |
| Number of Fibers | 2 FIBER |
| Type | PATCH CORDS |
| UNSPSC Code | 26121650 |
Panduit - FX2ELLNLNSNM001 - Package Information
| UPC | 07498392191 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0155 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.1550 |
