Panduit FX2ELLNLNSNM019 | LC Patch Cord
Description
Description
Fiber optic patch cords and pigtails provide interconnect and cross connect of applications over installations in entrance facilities, telecommunications rooms, data centers and at the desk. Patch cords support network applications in main, horizontal and equipment distribution areas and are available in riser (OFNR) and low smoke zero halogen (LSZH) rated jacket materials to comply with local cabling ordinances. Pre-terminated fiber optic pigtails support fusion splice field termination applications. Fiber optic patch cords and pigtails are available in OM4, OM3, OM2, OM1 or OS1/ OS2 fiber types to meet the demands of Gigabit Ethernet, 10 Gigabit Ethernet and high speed fiber channel.

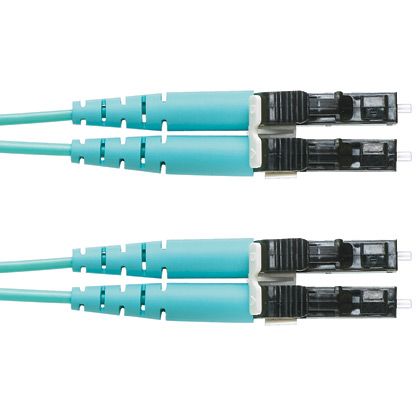

Panduit Opti-Core Fiber Optic Patch Cord, OM3 Multimode, 2 Fibers, 62.34 ft Length, LC Duplex Connector, 50 um Core, 125 um Clad, Aqua
Panduit - FX2ELLNLNSNM019 - Features
- The 2-pieces design incorporates a stainless steel locking barb which provides consistent performance, reliability and infinite adjustability through entire bundle range
- High loop tensile strength exceeds industry standards and the patented low thread force design reduces operator fatigue and improves productivity
- Dome-Top head having smooth, round edges is easy for installers to handle
- Low thread force reduces installer fatigue while increases productivity
- Ribbed and stippled strap body prevents axial and lateral movement
- Exclusively designed finger grip assures positive grip during threading of tie
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
- Greater resistance to damage caused by ultraviolet light
- UV-resistant
Specifications
Specifications
Panduit - FX2ELLNLNSNM019 - Specifications
| Fiber Type | OM3 |
|---|---|
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | LC Duplex |
| Flammability Rating | LSZH |
| Maximum Connector Insertion Loss (dB) | 0.25 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 62.34 |
| Overall Length (m) | 19.00123 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.062992 |
| Outer Diameter (mm) | 1.6 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3,TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10), RoHS Compliant, All patch cord componentsmeet the requirements of Directive 2002/95/EC. |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Body Style | Duplex |
| Product Type | LC Patch Cord |
| Sub Brand | Opti-Core |
| UPC | 07498392231 |
Panduit - FX2ELLNLNSNM019 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
