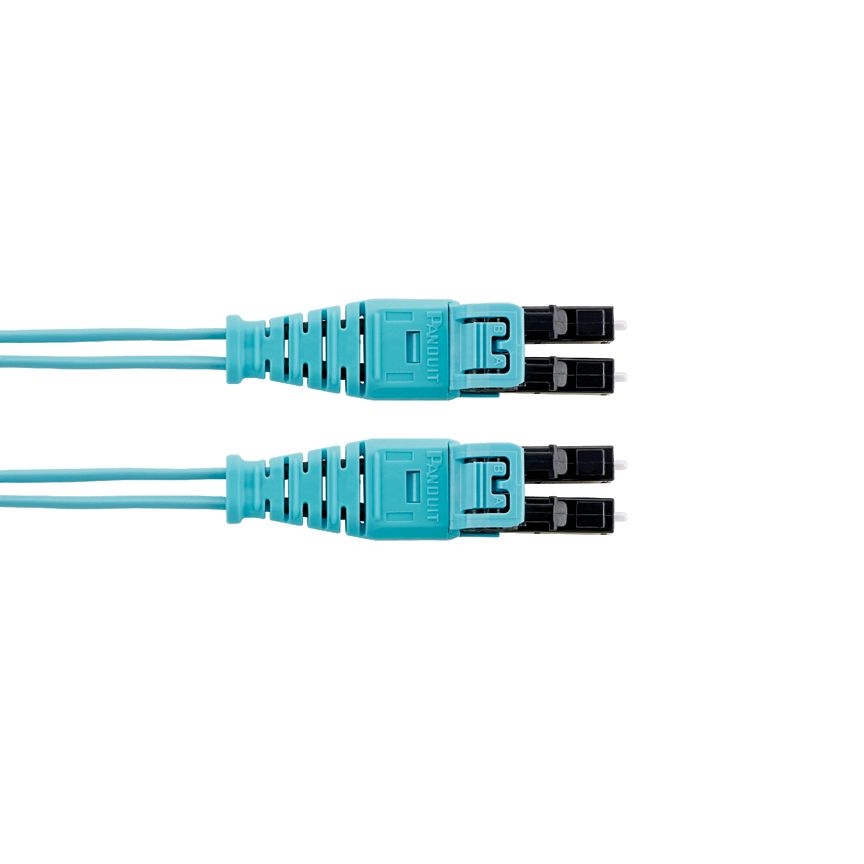

Panduit FX2ELQ1Q1SNM005 | Opti-Core LC Patch Cord
Description
Description
Our push-pull LC duplex zip patch cord offers a space-saving solution for your data center. With easy in-connection and a compact design, futureproof your infrastructure for faster speeds.
2 fiber OM3 patch cord, LC push pull to LC push pull, low smoke zero halogen (LSZH), 16mm jacket with Standard IL 5 meters
Push-pull LC duplex fiber optic patch cords containing the custom push-pull strain relief boot and duplex clip, allow users easy accessibility when deploying very high density LC patch fields in data center applications. Available in riser (OFNR) and low smoke zero halogen (LSZH) rated jacket materials to comply with local cabling ordinances and OM4, OM3 or OS1/OS2 fiber types to meet the demands of today's highest speed applications.
Panduit Opti-Core Fiber Optic Patch Cord, Duplex OM3 Multi-Mode LSZH, 2 Fibers, 16.4 ft Length, LC to LC Connector, 50 um Core, 125 um Clad, Aqua Jacket, -10 to 60 deg C
Specifications
Specifications
Panduit - FX2ELQ1Q1SNM005 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FX2ELQ1Q1SNM005 |
| Connector Type | Lc - Lc |
| Fiber Type | Om3 |
| Length | 5 M | 16.4 Ft. |
| Number Of Fibers | 2 Fiber |
| Type | Patch Cords |
| UNSPSC Code | 26121650 |
| Fiber Type | OM3 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | LC Duplex |
| Sub Brand | Opti-Core |
| Flammability Rating | LSZH |
| Insertion Loss Performance | Standard |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.062 |
| Outer Diameter (mm) | 1.6 |
| Overall Length (ft.) | 16.4 |
| Overall Length (m) | 5 |
| Cable Color | Aqua |
| Product Type | LC Patch Cord |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10) |
| UPC | 07498399088 |
Panduit - FX2ELQ1Q1SNM005 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
