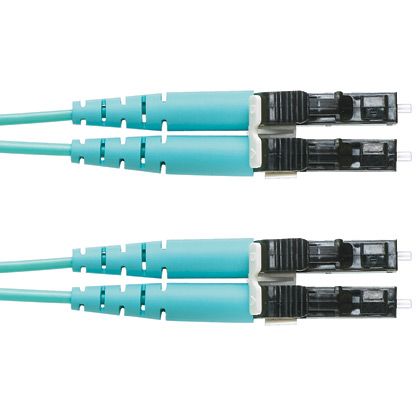

Panduit FX2ERLNLNSNM037 | LC Patch Cord
Description
Description
Fiber optic patch cords and pigtails provide interconnect and cross connect of applications over installations in entrance facilities, telecommunications rooms, data centers and at the desk. Patch cords support network applications in main, horizontal and equipment distribution areas and are available in riser (OFNR) and low smoke zero halogen (LSZH) rated jacket materials to comply with local cabling ordinances. Pre-terminated fiber optic pigtails support fusion splice field termination applications. Fiber optic patch cords and pigtails are available in OM4, OM3, OM2, OM1 or OS1/ OS2 fiber types to meet the demands of Gigabit Ethernet, 10 Gigabit Ethernet and high speed fiber channel.
Panduit Opti-Core Fiber Optic Patch Cord, Duplex OM3 Multi-Mode Riser, 2 Fibers, 121.39 ft Length, LC to LC Connector, 50 um Core, 125 um Clad, Aqua Jacket, -20 to 70 deg C
Panduit - FX2ERLNLNSNM037 - Features
- One hole with inspection hole
- Insulug type YAE-N nylon insulated terminals are designed with a multi finger insulation grip for paper, EPR and other elastic or hard to grip insulations
- EPR and other elastic or hard to grip Insulations
- The metal fingers firmly grip the insulation providing superior holding characteristics
- Cable support and strain relief
- Type YAE-N terminals are rated 105 deg C and meet military standard AS25036 Class 2 and SAE-AS7928 requirements
- Multi-finger insulation grip provides superior insulation holding characteristics
- Especially on epr and other elastic type insulations
- Brazed seam provides stronger more durable termination
- Manufactured of pure electrolytic copper provides maximum conductivity
- Low resistance and ductility for excellent crimp forming properties
- Deep V groove
- Inner barrel serrations provide optimum conductivity
- For heavy duty industrial, utility and military power and control-circuit applications
- Pure electrolytic copper
Specifications
Specifications
Panduit - FX2ERLNLNSNM037 - Specifications
| Fiber Type | OM3 |
|---|---|
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | LC Duplex |
| Flammability Rating | Riser |
| Maximum Connector Insertion Loss (dB) | 0.25 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 121.39 |
| Overall Length (m) | 37 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.062992 |
| Outer Diameter (mm) | 1.6 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Maximum Installation Temperature (°C) | 70 |
| Maximum Installation Temperature (°F) | 158 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3,TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10), RoHS Compliant, All patch cord componentsmeet the requirements of Directive 2002/95/EC. |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Body Style | Duplex |
| Product Type | LC Patch Cord |
| Sub Brand | Opti-Core |
| UPC | 07498379245 |
Panduit - FX2ERLNLNSNM037 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
