Panduit FX2ERLNLNSNM049 | LC Patch Cord
Description
Description
Fiber optic patch cords and pigtails provide interconnect and cross connect of applications over installations in entrance facilities, telecommunications rooms, data centers and at the desk. Patch cords support network applications in main, horizontal and equipment distribution areas and are available in riser (OFNR) and low smoke zero halogen (LSZH) rated jacket materials to comply with local cabling ordinances. Pre-terminated fiber optic pigtails support fusion splice field termination applications. Fiber optic patch cords and pigtails are available in OM4, OM3, OM2, OM1 or OS1/ OS2 fiber types to meet the demands of Gigabit Ethernet, 10 Gigabit Ethernet and high speed fiber channel.

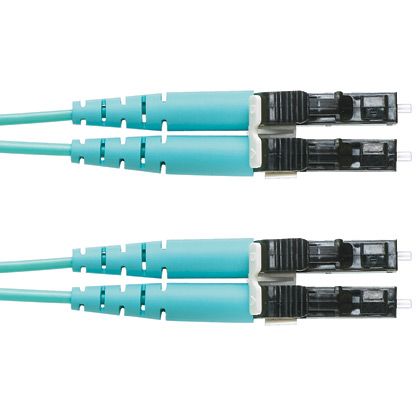

Panduit Opti-Core Fiber Optic Patch Cord, OM3 Multi-Mode, 2 Fibers, 160.76 ft Length, LC Duplex Connector, 50 um Core Dimension, 125 um Clad Dimension, Aqua, 158 deg F
Panduit - FX2ERLNLNSNM049 - Features
- Confidence that each jack module will deliver the critical electrical performance requirements
- Enhanced Giga-TX technology optimizes performance by eliminating conductor untwist and reduces installation time and expense
- UTP jack modules snap in and out of all Mini-Com faceplates, modular patch panels and surface mount boxes for easy moves, adds and changes
- Marked with quality control number for future traceability
- Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords, backward compatible
- Can be clearly identified with optional labels and icons for port identification
- Side opening allows cable to be terminated to the right or left side of the jack module, ideal for installations that have minimal depth that may not allow standard bend radius practices to be accommodated
- EGJT termination tool ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability, TGJT termination tool ideal for high volume installations
- Provides a simple and secure method to control access to data ports while not in use
- Integrated spring shuttered door keeps out dust and debris of un-mated RJ45 jack modules automatically
Specifications
Specifications
Panduit - FX2ERLNLNSNM049 - Specifications
| Fiber Type | OM3 |
|---|---|
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | LC Duplex |
| Flammability Rating | Riser |
| Maximum Connector Insertion Loss (dB) | 0.25 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 160.76 |
| Overall Length (m) | 49 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.062992 |
| Outer Diameter (mm) | 1.6 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Maximum Installation Temperature (°C) | 70 |
| Maximum Installation Temperature (°F) | 158 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3,TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10), RoHS Compliant, All patch cord componentsmeet the requirements of Directive 2002/95/EC. |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Body Style | Duplex |
| Product Type | LC Patch Cord |
| Sub Brand | Opti-Core |
| UPC | 07498379365 |
Panduit - FX2ERLNLNSNM049 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
