Panduit FX2ERLNSNSNM003 | Opti-Core 2 Fiber Patch Cord, OM3, LC to ...
Description
Description
Experience reliable, high-speed connections with our configurable connector patch cord. Perfect for data centers, telecom rooms, and offices, with fire-retardant options available.

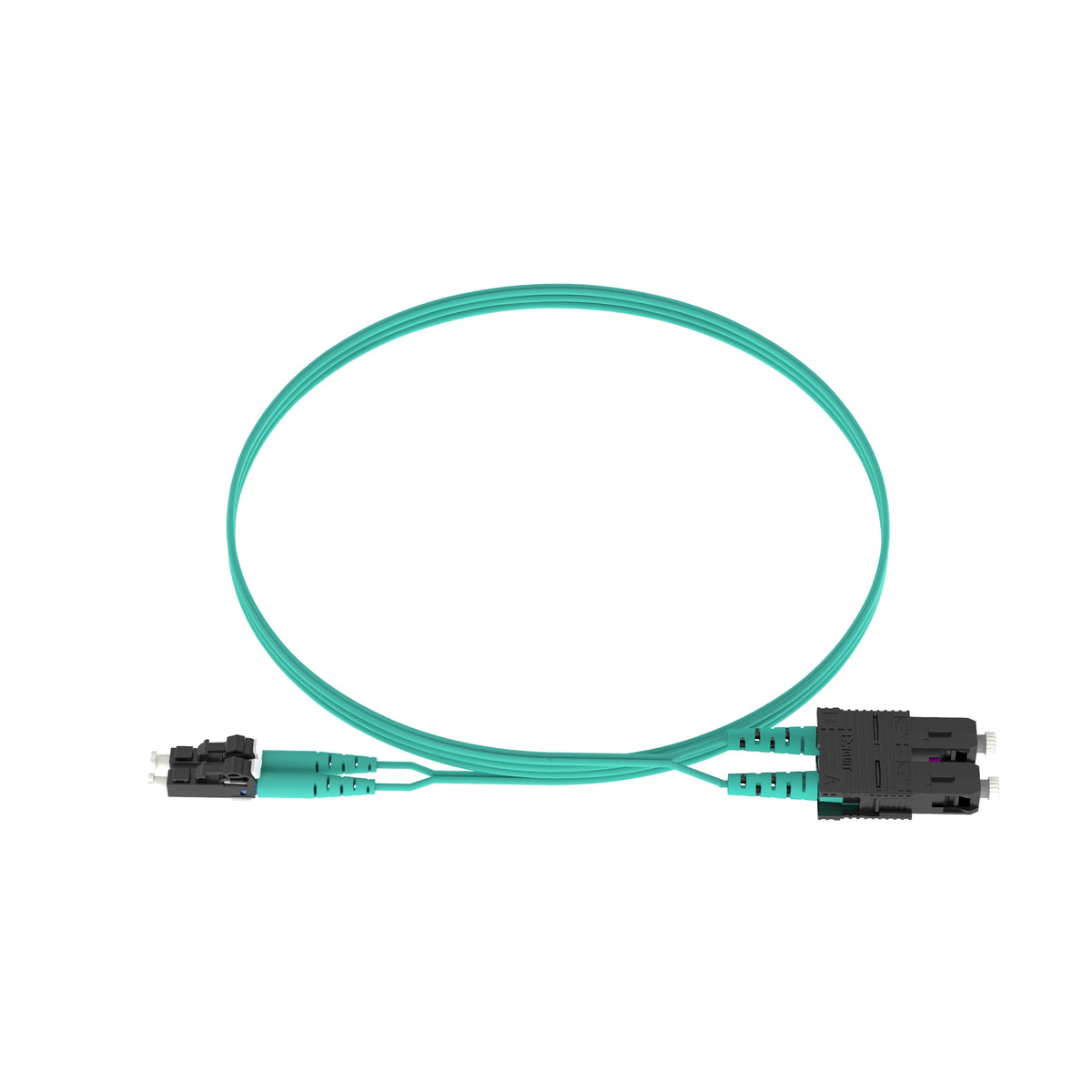

The duplex fiber patch cord is OM3 with a 1.6mm jacket. It is Riser (OFNR) rated and features LC Duplex to SC Duplex connectors. It has standard insertion loss and is 3 meters in length.
Panduit Opti-Core Patch Cord, OM3 OFNR Fiber Optic, 2 Fibers, 3 m Length, LC Duplex x SC Duplex Connector, 50 um Core Dimension, 125 um Clad Dimension, 0.25 dB Maximum Connector Insertion/26 dB Minimum Connector Return Attenuation Rating, Aqua Jacket, -20 to 70 deg C
Panduit - FX2ERLNSNSNM003 - Features
- Performance/construction - standard IL (A-B)
- 1.6 mm cable
Specifications
Specifications
Panduit - FX2ERLNSNSNM003 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FX2ERLNSNSNM003 |
| Connector Type | Lc - Sc |
| Fiber Type | Om3 |
| Length | 3 M | 9.84 Ft. |
| Number Of Fibers | 2 Fiber |
| Type | Patch Cords |
| UNSPSC Code | 26121650 |
| Fiber Type | OM3 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | SC Duplex |
| Sub Brand | Opti-Core |
| Flammability Rating | Riser (OFNR) |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.062 |
| Outer Diameter (mm) | 1.6 |
| Overall Length (ft.) | 9.8 |
| Overall Length (m) | 3 |
| Cable Color | Aqua |
| Product Type | Fiber Optic Patch Cord |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10) |
| UPC | 07498373059 |
Panduit - FX2ERLNSNSNM003 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
