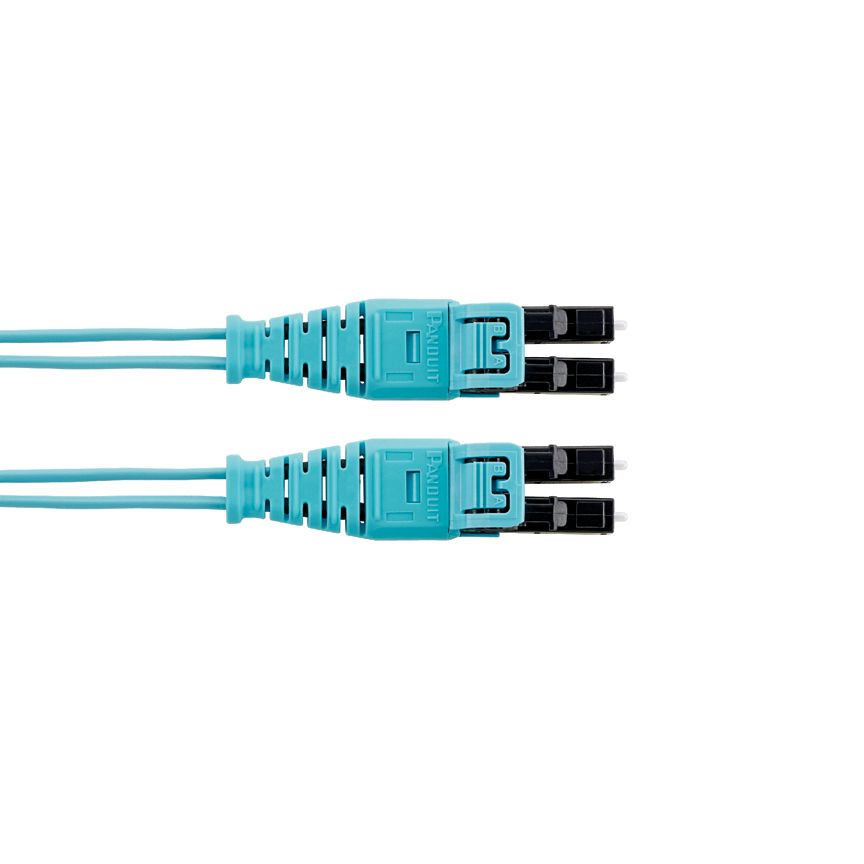

Panduit FX2ERQ1Q1ONM006 | LC Push Pull Patch Cord | UPC - 07498300560
Regular price
$52.89
Unit price
Brand: Panduit
|
SKU:
681793
Regular price
$52.89
Unit price
Description
Description
2 fiber OM3 patch cord, LC push pull to LC push pull, 16mm jacket, riser (OFNR) rated, Optimized IL, 6m
Panduit FX2ERQ1Q1ONM006 Key Specs
| Fiber Type | OM3 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex Push-Pull |
| Connector 2 Type | LC Push-Pull |
| Flammability Rating | Riser |
| Maximum Connector Insertion Loss (dB) | 0.15 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 19.69 |
| Overall Length (m) | 6 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.06 |
| Outer Diameter (mm) | 1.6 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°C) | -10 |
| Minimum Installation Temperature (°F) | 14 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA-568-C.3, TIA-604-10 (FOCIS-10), All patch cord components meet the requirement of Directive, 2002/95/EC, RoHS Compliant. |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Body Style | Duplex |
| Product Type | LC Push Pull Patch Cord |
| Sub Brand | Opti-Core |
Panduit FX2ERQ1Q1ONM006 Data Sheets
| Specification Sheets | Opti-Core Fiber Optic Patch Cords and Pigtails Spec Sheet | Download and View |
| Installation Documents | Push-Pull LC Duplex Fiber Optic Patch Cords: FS053 | Download and View |
| Selection Guides | HD Flex Fiber Cabling System Ordering Guide: D-FBCB45--SA-ENG | Download and View |
| Brochures | HD Flex Fiber Cabling System | Download and View |
| Specification Sheets | Opti-Core Push-Pull LC Duplex Fiber Optic Patch Cords Specification Sheet FBSP90--WW-ENG | Download and View |
