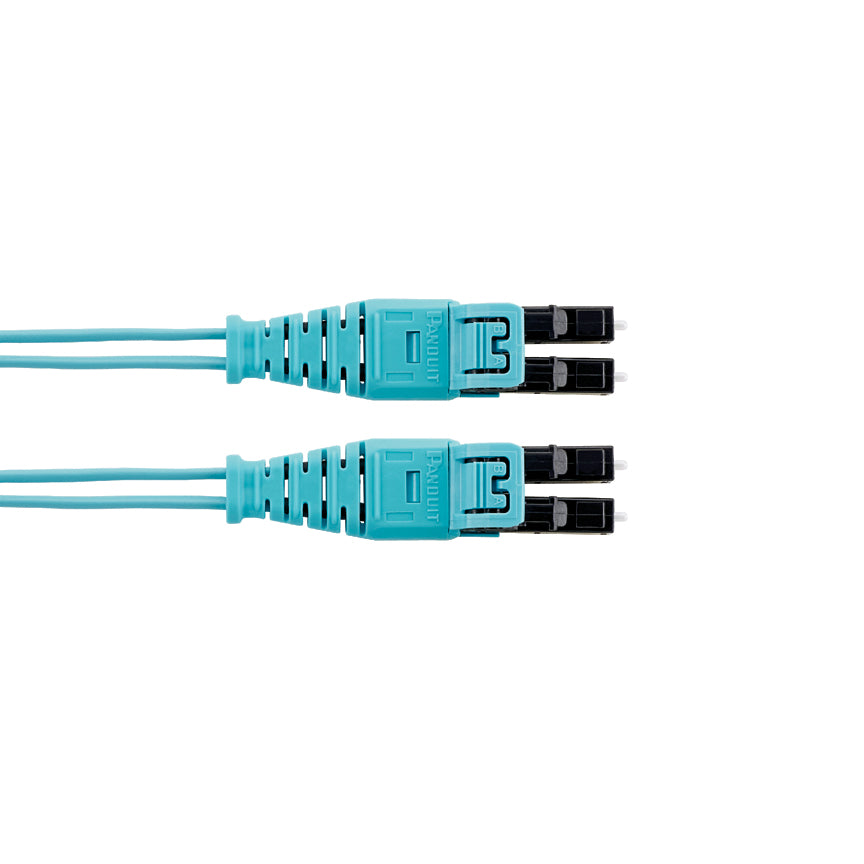

Panduit FX2ERQ1Q1ONM008 | LC Push Pull Patch Cord | UPC - 07498303276
Regular price
$57.32
Unit price
Brand: Panduit
|
SKU:
681795
Regular price
$57.32
Unit price
Description
Description
2 fiber OM3 patch cord, LC push pull to LC push pull, 16mm jacket, riser (OFNR) rated, Optimized IL, 8m
Panduit LC Push Pull Patch Cord Key Specs
| Fiber Type | OM3 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex Push-Pull |
| Connector 2 Type | LC Push-Pull |
| Flammability Rating | Riser |
| Maximum Connector Insertion Loss (dB) | 0.15 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 26.25 |
| Overall Length (m) | 8 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.06 |
| Outer Diameter (mm) | 1.6 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°C) | -10 |
| Minimum Installation Temperature (°F) | 14 |
Panduit LC Push Pull Patch Cord Data Sheets
| Specification Sheets | Opti-Core® Fiber Optic Patch Cords and Pigtails Spec Sheet | Download and View |
| Installation Documents | Push-Pull LC Duplex Fiber Optic Patch Cords: FS053 | Download and View |
| Selection Guides | HD Flex Fiber Cabling System Ordering Guide: D-FBCB45--SA-ENG | Download and View |
Panduit LC Push Pull Patch Cord Environmental Information
| Panduit's RoHS Statement | Download and View |
