Panduit FX2ERQ1Q1SNM002 | Opti-Core 2 Fiber Patch Cord, OM3, LC Pus...
Description
Description

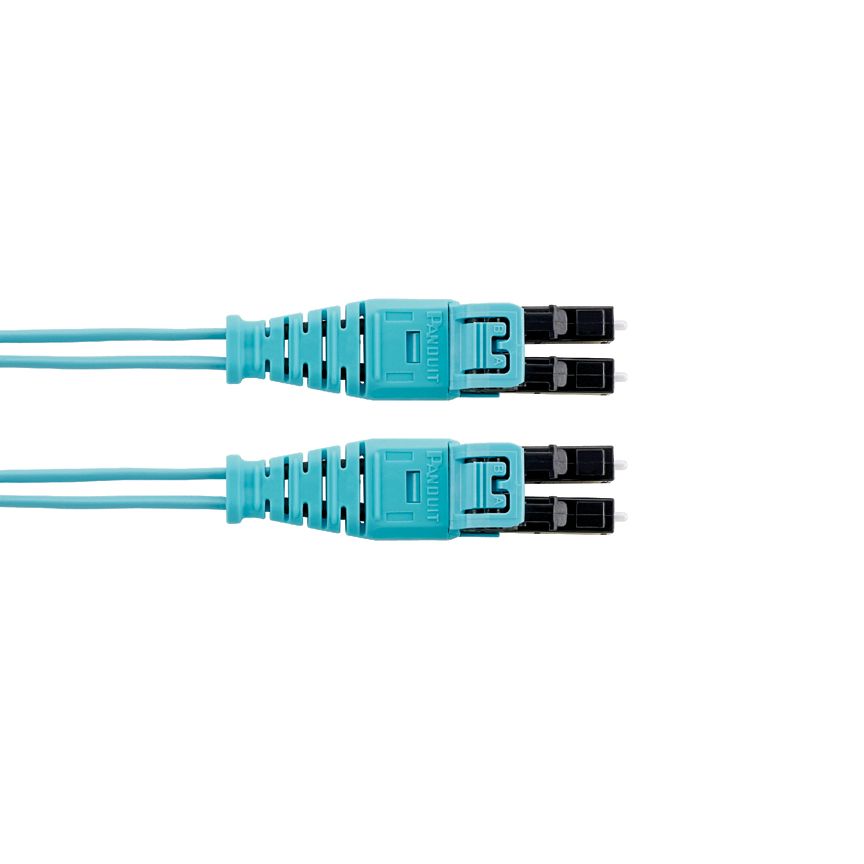

Our push-pull LC duplex zip patch cord offers a space-saving solution for your data center. With easy in-connection and a compact design, futureproof your infrastructure for faster speeds.
The duplex fiber patch cord is OM3 with a 1.6mm jacket. It is Riser (OFNR) rated and features LC Push Pull connectors. It has standard insertion loss and is 2 meters in length.
Push-pull LC duplex fiber optic patch cords containing the custom push-pull strain relief boot and duplex clip, allow users easy accessibility when deploying very high density LC patch fields in data center applications. Available in riser (OFNR) and low smoke zero halogen (LSZH) rated jacket materials to comply with local cabling ordinances and OM4, OM3 or OS1/OS2 fiber types to meet the demands of today's highest speed applications.
Panduit Opti-Core Fiber Optic Patch Cord, OM3 Multi-Mode Riser, 2 Fibers, 6.56 ft Length, LC Duplex Push Pull Connector, 50 um Core, 125 um Clad, 0.25 dB Attenuation, Aqua Jacket, -20 to 70 deg C
Panduit - FX2ERQ1Q1SNM002 - Features
- 16 mm jacket, riser (OFNR) rated
- 1.6 mm cable
- Standard IL construction
Specifications
Specifications
Panduit - FX2ERQ1Q1SNM002 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FX2ERQ1Q1SNM002 |
| Connector Type | Lc - Lc |
| Fiber Type | Om3 |
| Length | 2 M | 6.56 Ft. |
| Number Of Fibers | 2 Fiber |
| Type | Patch Cords |
| UNSPSC Code | 26121650 |
| Fiber Type | OM3 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex Push-Pull |
| Connector 2 Type | LC Duplex Push-Pull |
| Sub Brand | Opti-Core |
| Flammability Rating | Riser (OFNR) |
| Insertion Loss Performance | Standard |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.06 |
| Outer Diameter (mm) | 1.6 |
| Overall Length (ft.) | 6.5 |
| Overall Length (m) | 2 |
| Cable Color | Aqua |
| Product Type | LC Push-Pull Patch Cord |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10) |
| UPC | 07498399629 |
Panduit - FX2ERQ1Q1SNM002 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
Documents and Downloads
Documents and Downloads
- Panduit FX2ERQ1Q1SNM002 Specification Sheet
- Panduit FX2ERQ1Q1SNM002 Installation Documents
- Panduit FX2ERQ1Q1SNM002 Part Drawings
- Panduit FX2ERQ1Q1SNM002 Selection Guides
- Panduit FX2ERQ1Q1SNM002 Brochures
- Panduit FX2ERQ1Q1SNM002 Specification Sheets
- Panduit FX2ERQ1Q1SNM002 Specification Sheets
- Panduit FX2ERQ1Q1SNM002 RoHS Statement
