Panduit FX2ERQ1Q1SNM024 | LC Push Pull Patch Cord
Regular price
$109.86
Unit price
Brand: Panduit
|
SKU:
681856
Regular price
$109.86
Unit price
Description
Description

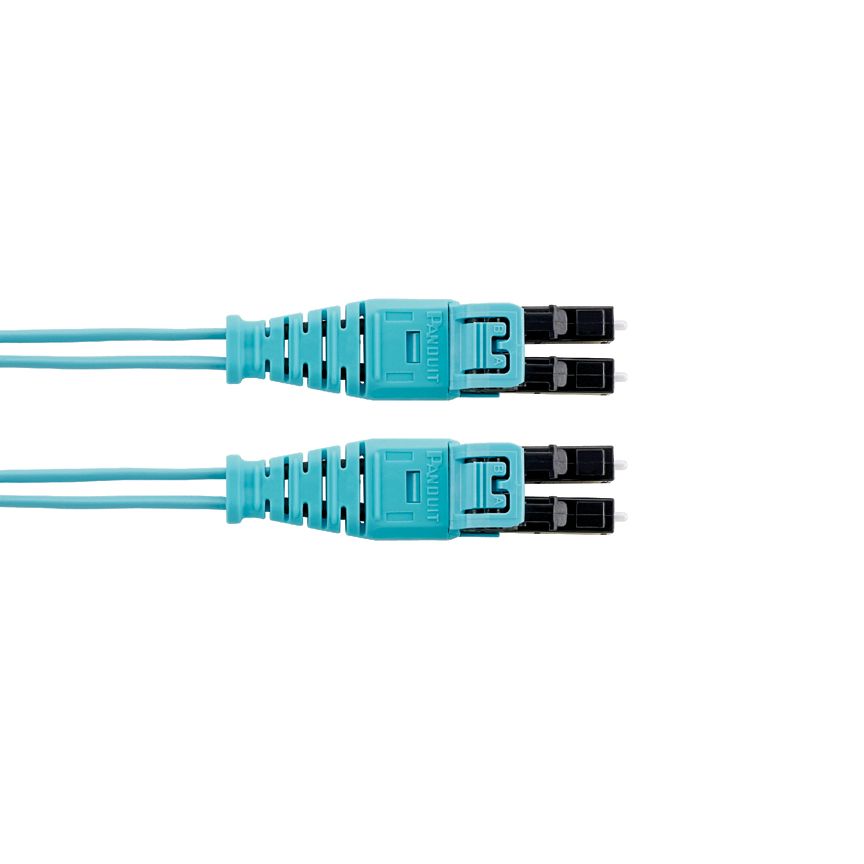

Panduit FX2ERQ1Q1SNM024 | LC Push Pull Patch Cord
2 fiber OM3 patch cord, LC push pull to LC push pull, 16mm jacket, riser (OFNR) rated, Standard IL 24 meters
Panduit Opti-Core Fiber Optic Patch Cord, Duplex, 2 Fibers, 24 m Length, LC Push-Pull Connector, 125 um Clad, 0.25 dB Attenuation, Low-Smoke Zero Halogen Jacket, Aqua Jacket, -10 to 60 deg C
Panduit - FX2ERQ1Q1SNM024 - Features
- Two module space, 1/2 in size sloped modular insert
- Accepts two NetKey modules
Specifications
Specifications
Panduit - FX2ERQ1Q1SNM024 - Specifications
| Connector Type | Lc - Lc |
|---|---|
| Fiber Type | Om3 |
| Length | 24 M | 78.74 Ft. |
| Number Of Fibers | 2 Fiber |
| Type | Patch Cords |
| UNSPSC Code | 26121650 |
| Fiber Type | OM3 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex Push-Pull |
| Connector 2 Type | LC Push-Pull |
| Flammability Rating | Riser |
| Maximum Connector Insertion Loss (dB) | 0.25 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 78.74 |
| Overall Length (m) | 24 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.06 |
| Outer Diameter (mm) | 1.6 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°C) | -10 |
| Minimum Installation Temperature (°F) | 14 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA-568-C.3, TIA-604-10 (FOCIS-10), All patch cord components meet the requirement of Directive, 2002/95/EC, RoHS Compliant. |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at thedesk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, andequipment distribution areas. |
| Body Style | Duplex |
| Product Type | LC Push Pull Patch Cord |
| Sub Brand | Opti-Core |
| UPC | 07498399737 |
Panduit - FX2ERQ1Q1SNM024 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
