Brand: Panduit | SKU: 681870

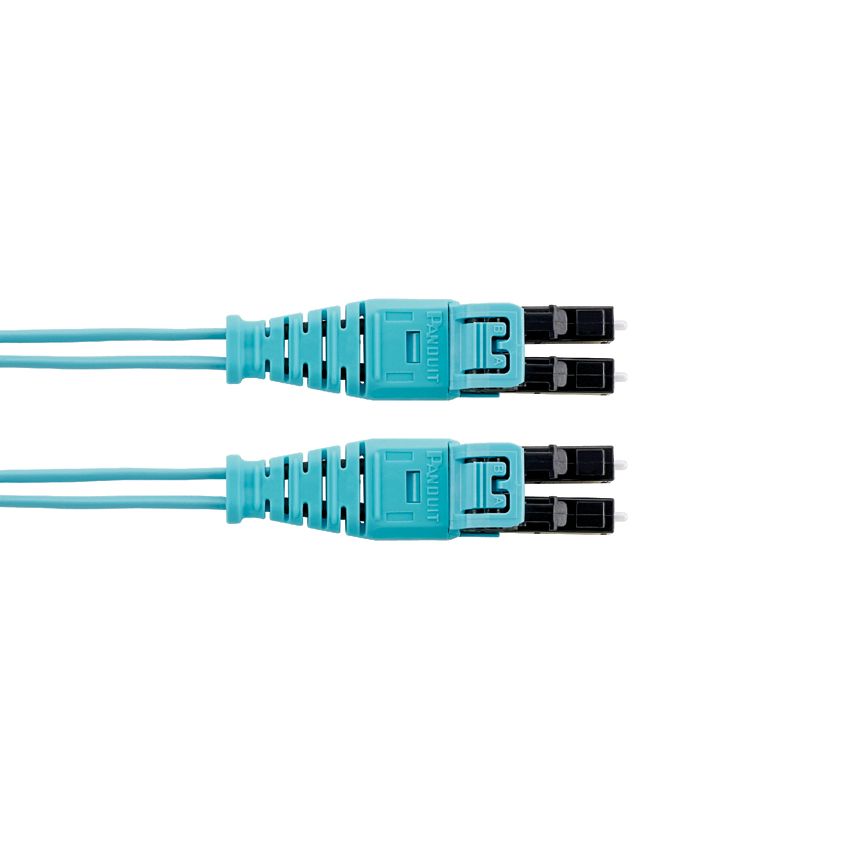

Panduit FX2ERQ1Q1SNM038 | LC Push Pull Patch Cord

Name: Panduit FX2ERQ1Q1SNM038 | LC Push Pull Patch Cord
Brand: Anixter
SKU: 681870
Price: 139.86 USD
Availability: InStock

$139.86

Description

2 fiber OM3 patch cord, LC push pull to LC push pull, 16mm jacket, riser (OFNR) rated, Standard IL

FX2ERQ1Q1SNM038 2-fiber OM3 patch cord LC push-pull to LC push-pull 1.6mm jacket riser (OFNR) rated Standard IL.

Convenient, pocket sized book
Full size markers are perforated and can be torn into half size markers for both ends of conductors
Terminal block markers are included to properly identify connectors
Ten pages of markers/book
Pre-printed black on white vinyl cloth, adhesive back markers
Indoor/outdoor rated
Conformable label can be removed and reused
Durable, temperature-resistant and dimensionally stable for rough, textured surfaces
Resists oil and abrasion
Markers are durable enough for up to 5 years outdoor UV resistance

Connector Type	Lc - Lc
Fiber Type	Om3
Length	38 M \| 124.67 Ft.
Number Of Fibers	2 Fiber
Type	Patch Cords
UNSPSC Code	26121650
Fiber Type	OM3
Number of Fibers	2
Connector 1 Type	LC Duplex Push-Pull
Connector 2 Type	LC Push-Pull
Flammability Rating	Riser
Maximum Connector Insertion Loss (dB)	0.25
Minimum Connector Return Loss (dB)	26
Overall Length (ft.)	124.67
Overall Length (m)	38
Fiber Diameter (µm)	50
Outer Diameter (In.)	0.06
Outer Diameter (mm)	1.6
Maximum Operating Temperature (°C)	60
Maximum Operating Temperature (°F)	140
Minimum Operating Temperature (°C)	-10
Minimum Operating Temperature (°F)	14
Maximum Installation Temperature (°C)	60
Maximum Installation Temperature (°F)	140
Minimum Installation Temperature (°C)	-10
Minimum Installation Temperature (°F)	14
Resistance Properties	Flame-Resistant
Cable Color	Aqua
Standards Met	Meets or exceeds ISO/IEC 11801, TIA-568-C.3, TIA-604-10 (FOCIS-10), All patch cord components meet the requirement of Directive, 2002/95/EC, RoHS Compliant.
Application	Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at thedesk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, andequipment distribution areas.
Body Style	Duplex
Product Type	LC Push Pull Patch Cord
Sub Brand	Opti-Core
UPC	07498399954

RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	Not Applicable
ECCN	EAR99
HTSUS	8544.70.0000
