Brand: Panduit
|
SKU:
609831

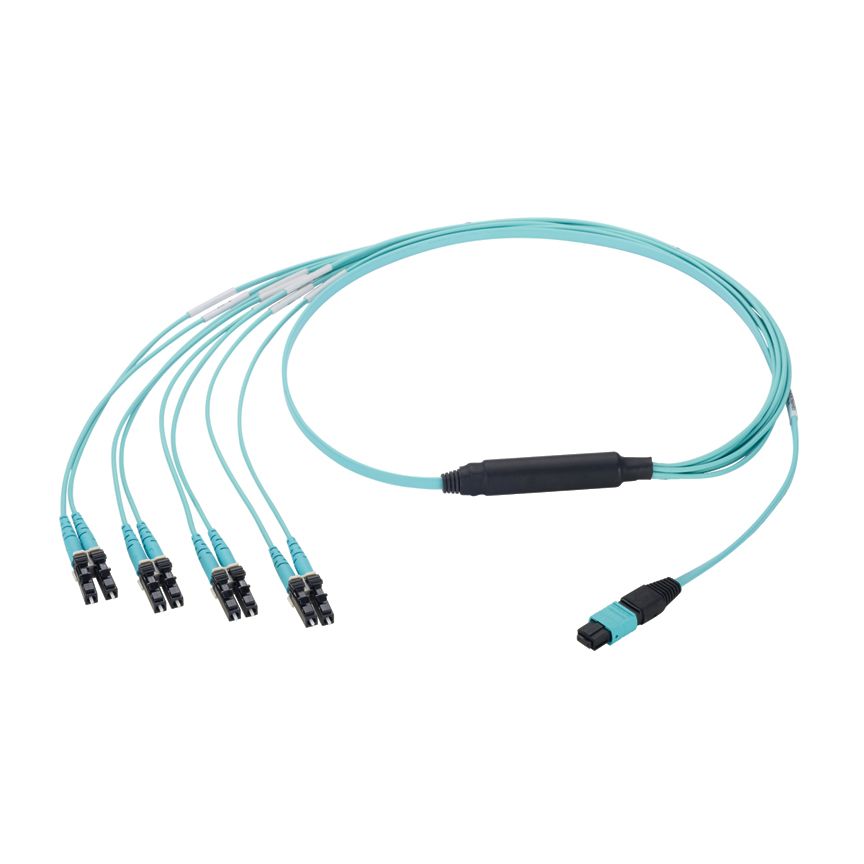

Panduit FX8HP5NLSQNF015 | OM3, 8-Fbr, Harness, F-LC, PLEM, 3ft
Regular price
$509.27
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FX8HP5NLSQNF015 | OM3, 8-Fbr, Harness, F-LC, PLEM, 3ft
Regular price
$509.27
Unit price
Description
Description
Panduit FX8HP5NLSQNF015 | OM3, 8-Fbr, Harness, F-LC, PLEM, 3ft
OM3 8-fiber harness cable assembly plenum (OFNP) rated, MPO female to LC duplex, 60cm (24 inch) breakout, QSFP to SFP Migration Harness, Std. IL. Aqua, 15 ft.
OM3 8-fiber harness cable assembly plenum (OFNP) rated, MPO female to LC duplex, 60cm (24 inch) breakout, QSFP to SFP Migration Harness, Std. IL. Aqua, 15 ft.
Panduit - FX8HP5NLSQNF015 - Features
- These small cables minimize waste, optimize cable management, speed deployment, improve flexibility and manageability
- Typically used for connectivity between the switch in horizontal cabling
- Installs into QuickNet MPO patch panels on one end and switch ports on the other end
- New cable management transition allows multiple harnesses to attach to each other or be secured to a rack or cabinet with Tak-Ty hook and loop cable ties
Specifications
Specifications
Panduit - FX8HP5NLSQNF015 - Specifications
| Fiber Type | OM3 |
|---|---|
| Number of Fibers | 8 |
| Connector 2 Type | LC Duplex |
| Sub Brand | QuickNet™ |
| Overall Length (ft.) | 15 |
| Overall Length (m) | 4.6 |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, RoHS Compliant |
| Flammability Rating | Plenum (OFNP) |
| Product Type | Harness Cable Assembly |
| Application | Interconnection of QSFP+ modular transceiver ports in 40 GE switches with multiple SFP+ modular ports in 10 GE switches. |
| Cable Color | Aqua |
| UPC | 07498361203 |
Panduit - FX8HP5NLSQNF015 - Package Information
| UPC | 07498361203 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 0.0387 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.3874 |
Documents and Downloads
Documents and Downloads
- Panduit FX8HP5NLSQNF015 Application Notes
- Panduit FX8HP5NLSQNF015 Application Notes
- Panduit FX8HP5NLSQNF015 Part Drawings
- Panduit FX8HP5NLSQNF015 Specification Sheets
- Panduit FX8HP5NLSQNF015 Installation Documents
- Panduit FX8HP5NLSQNF015 Application Guides
- Panduit FX8HP5NLSQNF015 Application Guides
- Panduit FX8HP5NLSQNF015 RoHS Statement
