Panduit FX8RP7NUSQNF005 | QuickNet Harness Cable Assembly
Description
Description
Our PanMPO female to LC uniboot equal breakout cable harness provides a cost-effective, space-saving solution to connect MPO switches to standard LC equipment for flexible network expansion.
To meet the needs for fiber cable plant migration to higher speeds, Panduit offers 4 to 1 conversion harness assemblies. As part of the Panduit High speed Data Transport (HSDT) solution, these passive fiber cables provide a cost effective solution for interconnecting high speed switches equipped with MPO modular transceivers to switches equipped with LC transceivers. The PanMPO end is wired as four separate transmit and receive fibers which are connected to four LC connector ends. The four LC connector ends can be directly attached to co-located switch gear or connected to an existing LC based structured cabling system to allow for distribution to different locations in the data center.

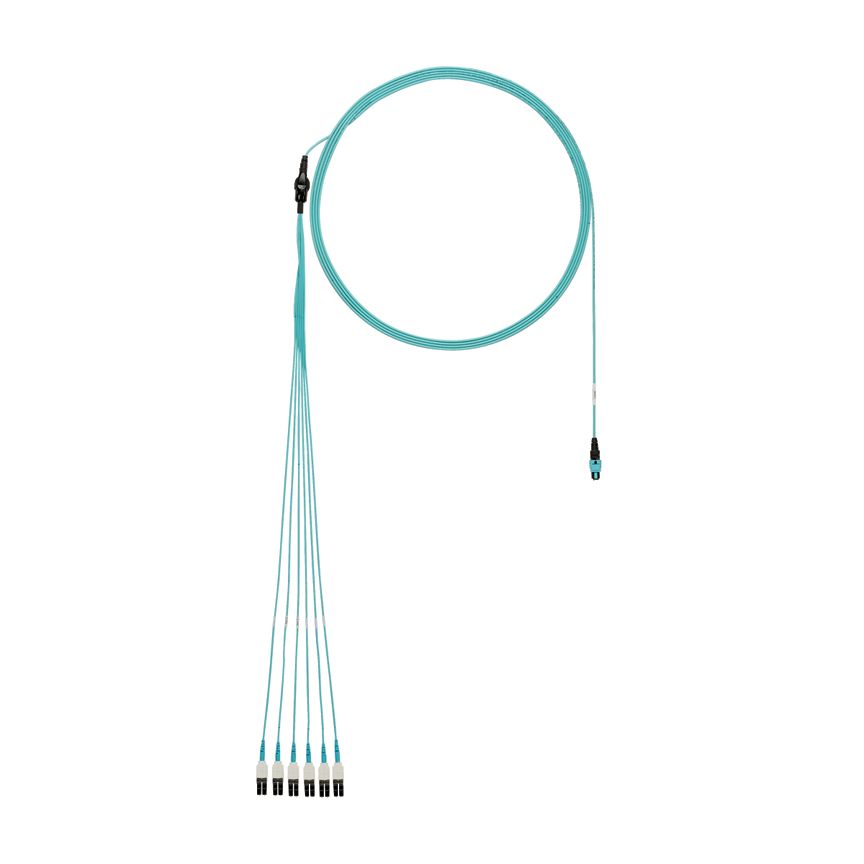

Panduit QuickNet PanMPO Harness Cable Assembly, 8-Fiber 4 to 1 Conversion OM3 Multi-Mode Round, PanMPO Female End A, LC Uniboot End B, 5 ft Length, Plenum (OFNP), Aqua
Panduit - FX8RP7NUSQNF005 - Features
- Minimize waste
- Optimize cable management
- Speed deployment, improve flexibility and manageability
- Cost effective solution for interconnecting high speed switches and allows for distribution to different locations in the data center
Specifications
Specifications
Panduit - FX8RP7NUSQNF005 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FX8RP7NUSQNF005 |
| Fiber Type | OM3 |
| Number of Fibers | 8 |
| Connector 1 Type | PanMPO-12 Female |
| Connector 2 Type | LC Duplex Uniboot |
| Sub Brand | QuickNet |
| Overall Length (ft.) | 5 |
| Overall Length (m) | 1.5 |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, TIA/EIA 604-12 (FOCIS-12) and RoHS Compliant |
| Flammability Rating | Plenum (OFNP) |
| Product Type | Harness Cable Assembly |
| Application | Interconnection of MPO modular transceiver ports with multiple LC modular ports |
| Cable Color | Aqua |
| Part Features | Cost-effective solution for interconnecting high speed switches and allows for distribution to different locations in the data center. |
| UPC | 07498398025 |
Panduit - FX8RP7NUSQNF005 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
