Panduit FXB10A-NM1 | Keyed LC Patch Cord | UPC - 07498302882
Regular price
$34.93
Unit price
Description
Description

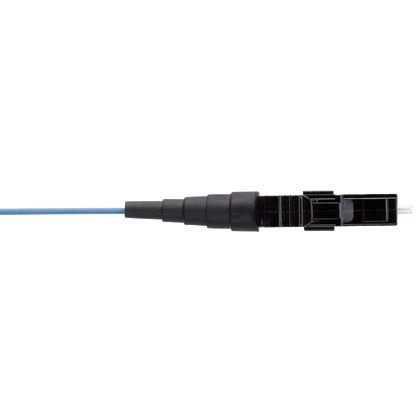

LC (keyed A black) to pigtail multimode simplex pigtail, 900µm buffered fiber (one keyed LC connector on one end and open on the other end) 50/125µm
Panduit FXB10A-NM1 Key Specs
| Note | Intended for use in fixed installations which are outside the scope of RoHS |
| Fiber Type | OM3 |
| Number of Fibers | 1 |
| Connector 1 Type | Keyed LC Simplex |
| Connector 2 Type | Pigtail |
| Flammability Rating | Riser |
| Maximum Connector Insertion Loss (dB) | 0.3 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 3.28 |
| Overall Length (m) | 1 |
| Fiber Diameter (µm) | 50 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
| Standards Met | RoHS Directive is not applicable;Compliant with TIA/EIA-568-B.3, IEC-61754-7 (International), and UL1666 (OFNR) or NFPA 262 (OFNP) flame ratings |
| Application | The primary application for Keyed LC Opti-Core Fiber Optic Patch Cords and Pigtails is FTTD deployments that require a level of visual and mechanical differentiation, and physical layer security that conventional connector solutions cannot provide. |
| Body Style | Simplex |
| Product Type | Keyed LC Patch Cord |
| Sub Brand | Opti-Core |
Panduit FXB10A-NM1 Data Sheets
| Specification Sheets | Specification Sheet - WW-FBSP31 (Keyed LC OFNR OFNP PC Pgls Final 6910 | Download and View |
| Specification Sheets | Specification Sheet - WW-FBSP45-GB (Keyed LC Patch Cords LSZH) 2-18-10 | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - FXE10A-10AM1 Product Page | Download and View |
| Line Cards | Network Infrastructure Security Solutions Line Card: COLC07--SA-ENG | Download and View |
