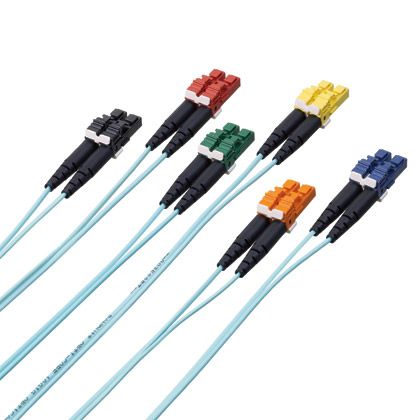

Panduit FXB10B-NM1 | Keyed LC Patch Cord
Description
Description
Keyed LC fiber optic patch cords shall include simplex or duplex keyed LC connectors on both ends or on one end with non-keyed LC or SC connectors on the other end. Keyed LC fiber optic pigtails shall include simplex or duplex keyed LC connectors on one end and open (un-terminated) on the other end. Keyed LC connectors shall be mechanically keyed with color specific positive and negative keying features to prevent unintentional mating with unlike keyed or non-keyed adapters. Patch cords and pigtails shall include laser optimized OM3 fiber, OM2, OM1 and OS1/OS2 fiber inside 900 um tight-buffered fiber or 1.6 mm simplex or duplex zip-cord jacketed cable. Jacketed cable shall be compliant with UL1666 (OFNR) or NFPA 262 (OFNP) flame ratings. Patch cords and pigtails shall be RoHS compliant and shall meet or exceed requirements of TIA/EIA-568-B.3. The fiber connectors shall exceed the requirements of TIA/EIA-455-21A for 500 mating cycles.
Panduit Opti-Core Fiber Optic Patch Cord, 1 Fibers, 49.21 ft Length, Keyed LC Simplex to Pigtail Connector, 50 um Core Dimension, 125 um Clad Dimension, OM3, Aqua
Panduit - FXB10B-NM1 - Features
- Accepts 4 FAP or FMP panels
- Color specific keys with positive and negative keying features
- Factory terminated and 100% tested for insertion loss and return loss
- Certified 10 GbE performance
- Test data supplied with each patch cord and pigtail
- Universal reference cords
- Flame retardant
Specifications
Specifications
Panduit - FXB10B-NM1 - Specifications
| Connector Type | Lc - Pigtail |
|---|---|
| Fiber Type | Om3 |
| Length | 1 M | 3.28 Ft. |
| Number Of Fibers | 1 Fiber |
| Type | Pigtail |
| UNSPSC Code | 26121650 |
| Note | Intended for use in fixed installations which are outside the scope of RoHS |
| Fiber Type | OM3 |
| Number of Fibers | 1 |
| Connector 1 Type | Keyed LC Simplex |
| Connector 2 Type | Pigtail |
| Flammability Rating | Riser |
| Maximum Connector Insertion Loss (dB) | 0.3 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 3.28 |
| Overall Length (m) | 1 |
| Fiber Diameter (µm) | 50 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
| Standards Met | RoHS Directive is not applicable;Compliant with TIA/EIA-568-B.3, IEC-61754-7 (International), and UL1666 (OFNR) or NFPA 262 (OFNP) flame ratings |
| Application | The primary application for Keyed LC Opti-Core Fiber Optic Patch Cords and Pigtails is FTTD deployments that require a level of visual and mechanical differentiation, and physical layer security that conventional connector solutions cannot provide. |
| Body Style | Simplex |
| Product Type | Keyed LC Patch Cord |
| Sub Brand | Opti-Core |
| UPC | 07498302896 |
Panduit - FXB10B-NM1 - Environmental Information
| Moisture Sensitivity Level (MSL) | Not Applicable |
|---|---|
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
