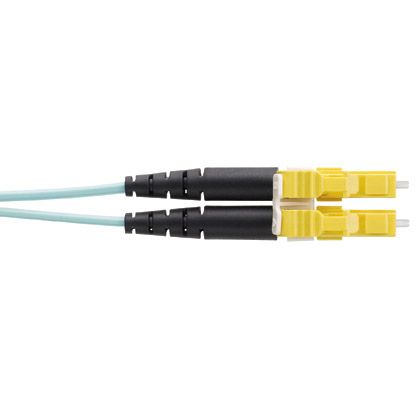

Panduit FXE10D-10M20 | Keyed LC Patch Cord | UPC - 07498306411
Regular price
$116.74
Unit price
Brand: Panduit
|
SKU:
687499
Regular price
$116.74
Unit price
Description
Description
LC (keyed D yellow) to LC multimode duplex patch cord, 16mm jacketed cable (one duplex keyed LC connector on one end and one duplex LC connector on the other end) 50/125µm, Aqua, 20 meters
Panduit FXE10D-10M20 Key Specs
| Note | Intended for use in fixed installations which are outside the scope of RoHS |
| Fiber Type | OM3 |
| Number of Fibers | 2 |
| Connector 1 Type | Keyed LC |
| Connector 2 Type | LC Duplex |
| Flammability Rating | Riser |
| Maximum Connector Insertion Loss (dB) | 0.3 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 65.62 |
| Overall Length (m) | 20 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.06 |
| Outer Diameter (mm) | 1.6 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
| Standards Met | RoHS Directive is not applicable;Compliant with TIA/EIA-568-B.3, IEC-61754-7 (International), and UL1666 (OFNR) or NFPA 262 (OFNP) flame ratings |
| Application | The primary application for Keyed LC Opti-Core Fiber Optic Patch Cords and Pigtails is FTTD deployments that require a level of visual and mechanical differentiation, and physical layer security that conventional connector solutions cannot provide. |
| Body Style | Duplex |
| Product Type | Keyed LC Patch Cord |
| Sub Brand | Opti-Core |
Panduit FXE10D-10M20 Data Sheets
| Part Drawings | Part Drawings - PDF - F5E10A-10M1_Rev_R_4 | Download and View |
