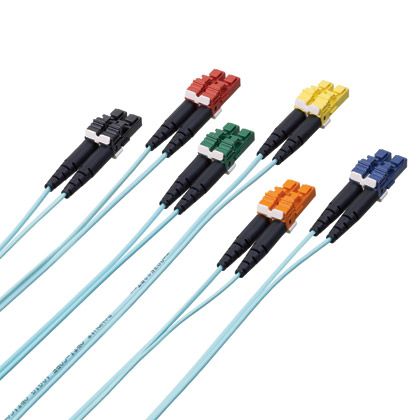

Panduit FXE3-10EM5 | Keyed LC Patch Cord
Description
Description
Fiber optic patch cords shall include simplex or duplex LC, SC, ST or MT-RJ connectors or FJ or keyed FJ plugs or jacks on both ends. RoHS compliant fiber optic pigtails shall include simplex or duplex LC, SC, ST or MT-RJ connectors or FJ or keyed FJ plugs or jacks on one end and open (un-terminated) on the other end. Patch cords and pigtails shall include laser optimized OM4, OM3 fiber or OM2, OM1 or OS1/OS2 fiber in 900 um tight buffered fiber, 1.6 or 3 mm simplex or duplex zip cord jacketed cable or 1.8 mm duplex zip cord jacketed cable. Jacketed cable shall be compliant with UL 1666 (OFNR) or NFPA 262 (OFNP) flame ratings. Patch cords and pigtails shall meet or exceed requirements of TIA/EIA-568-C.3. The fiber connectors shall be FOCIS compliant or compatible and exceed the requirements of TIA/EIA-455-21A for 500 mating cycles.
Panduit Opti-Core Fiber Optic Patch Cord, 2 Fibers, 32.81 ft Length, SC Duplex to LC Connector, 50 um Core Dimension, 125 um Clad Dimension, OM3, Aqua
Panduit - FXE3-10EM5 - Features
- Ideal for high strain areas where cable is routed from panel to panel door
- Compatible with most control panel switch designs
- Installed behind control panel switch
- For use with miniature, intermediate and standard cable ties
- 100% performance tested assures that patch cords and pigtails are standard compliant
Specifications
Specifications
Panduit - FXE3-10EM5 - Specifications
| Connector Type | Sc - Lc |
|---|---|
| Fiber Type | Om3 |
| Length | 5 M | 16.4 Ft. |
| Number Of Fibers | 2 Fiber |
| Type | Patch Cords |
| UNSPSC Code | 26121650 |
| Note | Intended for use in fixed installations which are outside the scope of RoHS |
| Fiber Type | OM3 |
| Number of Fibers | 2 |
| Connector 1 Type | Keyed LC |
| Connector 2 Type | SC Duplex |
| Flammability Rating | Riser |
| Maximum Connector Insertion Loss (dB) | 0.3 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 16.4 |
| Overall Length (m) | 5 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.06 |
| Outer Diameter (mm) | 1.6 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
| Standards Met | RoHS Directive is not applicable;Compliant with TIA/EIA-568-B.3, IEC-61754-7 (International), and UL1666 (OFNR) or NFPA 262 (OFNP) flame ratings |
| Application | The primary application for Keyed LC Opti-Core Fiber Optic Patch Cords and Pigtails is FTTD deployments that require a level of visual and mechanical differentiation, and physical layer security that conventional connector solutions cannot provide. |
| Body Style | Duplex |
| Product Type | Keyed LC Patch Cord |
| Sub Brand | Opti-Core |
| UPC | 07498308065 |
Panduit - FXE3-10EM5 - Environmental Information
| Moisture Sensitivity Level (MSL) | Not Applicable |
|---|---|
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
