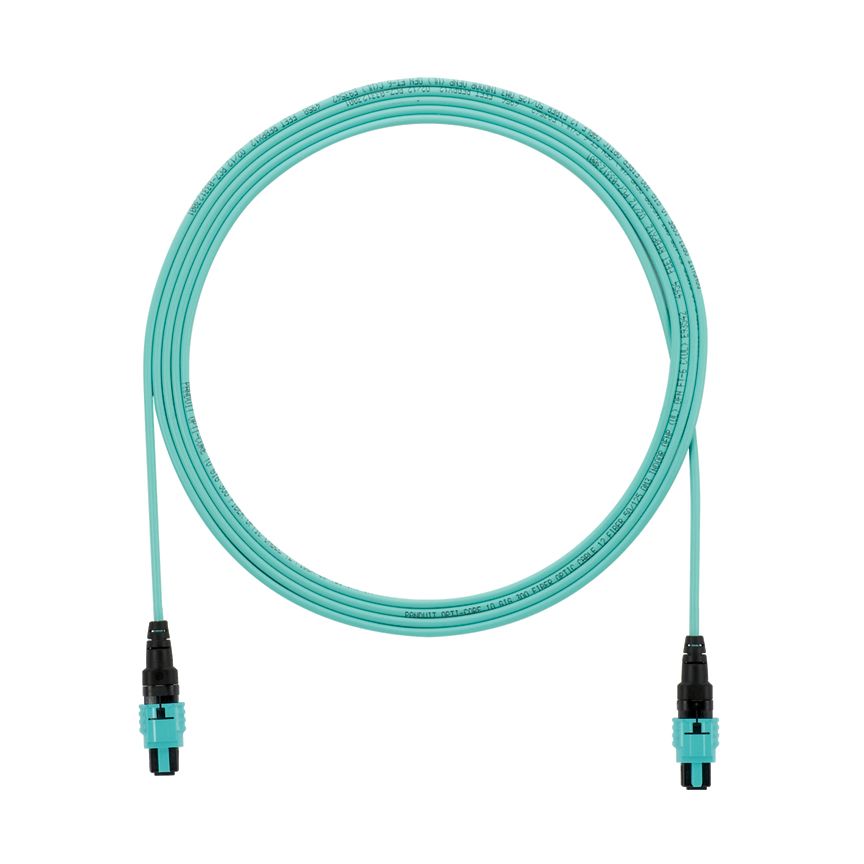

Panduit FXTRL7N7NBNM012 | Interconnect Cable Assembly
Description
Description
PanMPO round interconnect cable assemblies are pre-terminated 12-fiber cable assemblies. The unique design of the PanMPO connector allows for rapid gender and polarity change in the field, in support of standards-compliant cable plant migration from 10 Gb cassette-based systems to 40 Gb MPO connector-based parallel optics cable plant. PanMPO interconnect assemblies meet the demands of 10 Gb Ethernet and higher speed 40 Gb Ethernet and high speed ANSI fiber channel systems while maintaining compliance to the recommendations of TIA 568C for both serial duplex and parallel optics wiring schemes.
Panduit QuickNet Interconnect Cable Assembly, LSZH 12-OM3 Multimode Polarity B Standard IL, PanMPO Female Push-Pull End A, PanMPO Female Push-Pull End B, 12 m Length, 50/125 um Conductor, Aqua
Panduit - FXTRL7N7NBNM012 - Features
- Compatible with QuickNet patch panels for up to 96 fiber connections in 1RU with QAPP48HDBL QuickNet 48 port angled patch panel
- Connect together with high density female MTP cable assemblies as interconnecting network segments for deploying a remote or data center location in minutes
- Significantly reduce installation time and labor by eliminating field connector termination
- Factory terminated, assembled and 100% tested
- Insertion loss data provided on every fiber cassette
- Return loss data provided on all single mode fiber cassettes
- Lifetime traceability of test data to a Q.C. number on each fiber cassette
- Without pulling eye
- These small cables minimize waste, optimize cable management, speed deployment, improve flexibility and manageability
Specifications
Specifications
Panduit - FXTRL7N7NBNM012 - Specifications
| Connector Type | Mpo Female - Mpo Female |
|---|---|
| Fiber Type | Om3 |
| Length | 12 M | 39.37 Ft. |
| Number Of Fibers | 12 Fiber |
| Type | Trunk Cables |
| UNSPSC Code | 26121650 |
| Fiber Type | OM3 |
| Number of Fibers | 12 |
| Connector 1 Type | PanMPO Female |
| Connector 2 Type | PanMPO Female |
| Flammability Rating | LSZH |
| Maximum Connector Insertion Loss (dB) | 0.5 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 39.37 |
| Overall Length (m) | 12 |
| Standards Met | Meets or exceeds TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, RoHS Compliant |
| Part Features | These small cables minimize waste, optimize cable management, speed deployment, and improve flexibility and manageability. |
| Pricing Category 1 | FB |
| Pricing Category 2 | FB7 |
| UPC | 07498387351 |
Panduit - FXTRL7N7NBNM012 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 9001.10.0085 |
Documents and Downloads
Documents and Downloads
- Panduit FXTRL7N7NBNM012 Specification Sheet
- Panduit FXTRL7N7NBNM012 Technical References
- Panduit FXTRL7N7NBNM012 Flyers
- Panduit FXTRL7N7NBNM012 Video 1
- Panduit FXTRL7N7NBNM012 Technical References
- Panduit FXTRL7N7NBNM012 Installation Documents
- Panduit FXTRL7N7NBNM012 Video 2
- Panduit FXTRL7N7NBNM012 Specification Sheets
- Panduit FXTRL7N7NBNM012 RoHS Statement
