Panduit FXTRL7N7NYNM024 | Interconnect Cable Assembly
Description
Description
PanMPO round interconnect cable assemblies are pre-terminated 12-fiber cable assemblies. The unique design of the PanMPO connector allows for rapid gender and polarity change in the field, in support of standards-compliant cable plant migration from 10 Gb cassette-based systems to 40 Gb MPO connector-based parallel optics cable plant. PanMPO interconnect assemblies meet the demands of 10 Gb Ethernet and higher speed 40 Gb Ethernet and high speed ANSI fiber channel systems while maintaining compliance to the recommendations of TIA 568C for both serial duplex and parallel optics wiring schemes.

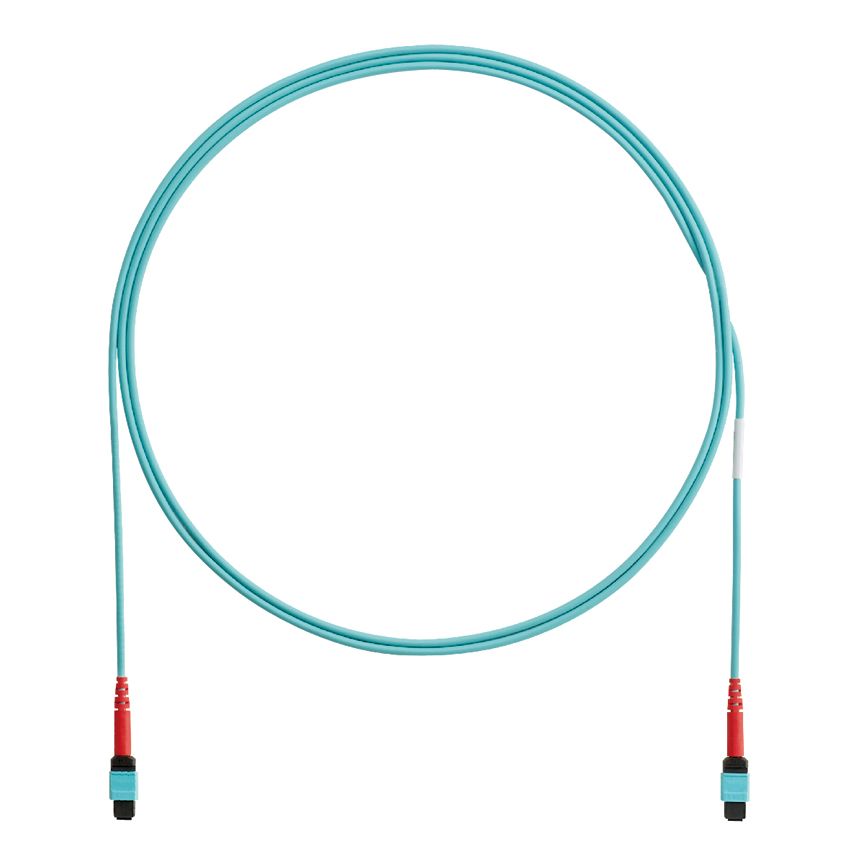

Panduit QuickNet Interconnect Cable Assembly, LSZH 12-OM3 Multimode Polarity B Optimized IL, PanMPO Female Push-Pull End A, PanMPO Female Push-Pull End B, 24 m Length, 50/125 um Conductor, Aqua
Panduit - FXTRL7N7NYNM024 - Features
- Labels can be printed in both laser and ink jet printers
- Die cut labels designed to provide maximum aesthetic quality and appearance
- Without pulling eye
- These small cables minimize waste, optimize cable management, speed deployment, improve flexibility and manageability
Specifications
Specifications
Panduit - FXTRL7N7NYNM024 - Specifications
| Connector Type | Mpo Female - Mpo Female |
|---|---|
| Fiber Type | Om3 |
| Length | 24 M | 78.74 Ft. |
| Number Of Fibers | 12 Fiber |
| Type | Trunk Cables |
| UNSPSC Code | 26121650 |
| Fiber Type | OM3 |
| Number of Fibers | 12 |
| Connector 1 Type | PanMPO Female |
| Connector 2 Type | PanMPO Female |
| Flammability Rating | LSZH |
| Maximum Connector Insertion Loss (dB) | 0.5 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 78.74 |
| Overall Length (m) | 24 |
| Standards Met | Meets or exceeds TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, RoHS Compliant |
| Part Features | These small cables minimize waste, optimize cable management, speed deployment, and improve flexibility and manageability. |
| Pricing Category 1 | FB |
| Pricing Category 2 | FB7 |
| UPC | 07498387027 |
Panduit - FXTRL7N7NYNM024 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 9001.10.0085 |
Documents and Downloads
Documents and Downloads
- Panduit FXTRL7N7NYNM024 Specification Sheet
- Panduit FXTRL7N7NYNM024 Technical References
- Panduit FXTRL7N7NYNM024 Technical References
- Panduit FXTRL7N7NYNM024 Flyers
- Panduit FXTRL7N7NYNM024 Specification Sheets
- Panduit FXTRL7N7NYNM024 Video 1
- Panduit FXTRL7N7NYNM024 Installation Documents
- Panduit FXTRL7N7NYNM024 Video 2
- Panduit FXTRL7N7NYNM024 RoHS Statement
