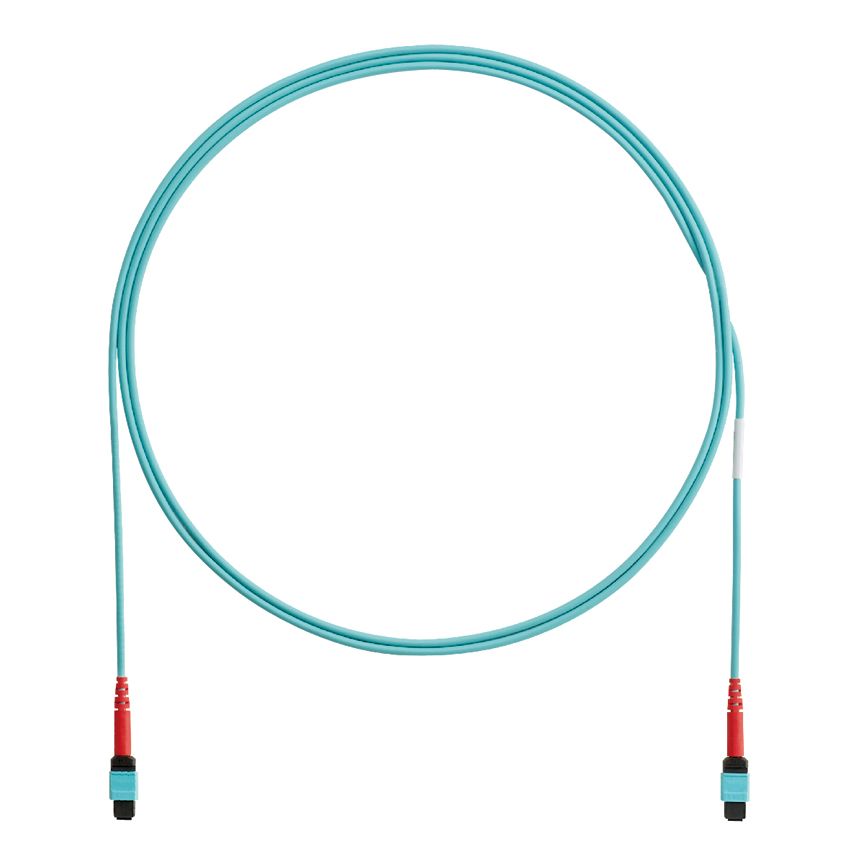

Panduit FXTRL7N7NYNM026 | Interconnect Cable Assembly
Description
Description
PanMPO round interconnect cable assemblies are pre-terminated 12-fiber cable assemblies. The unique design of the PanMPO connector allows for rapid gender and polarity change in the field, in support of standards-compliant cable plant migration from 10 Gb cassette-based systems to 40 Gb MPO connector-based parallel optics cable plant. PanMPO interconnect assemblies meet the demands of 10 Gb Ethernet and higher speed 40 Gb Ethernet and high speed ANSI fiber channel systems while maintaining compliance to the recommendations of TIA 568C for both serial duplex and parallel optics wiring schemes.
Panduit QuickNet Interconnect Cable Assembly, LSZH 12-OM3 Multimode Polarity B Optimized IL, PanMPO Female Push-Pull End A, PanMPO Female Push-Pull End B, 26 m Length, 50/125 um Conductor, Aqua
Panduit - FXTRL7N7NYNM026 - Features
- Industry recognized color coding allows proper part selection and quick identification of crimping dies to speed installation
- Large easy to read part numbering for verification in demanding low light conditions
- Single crimp design speeds installation and reduces labor costs
- Chamfered on both ends to facilitate fast and easy conductor insertion to speed installation
- Tin plated to inhibit corrosion
- For use with stranded copper conductors
- UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit dieless and die type crimping tools
- Without pulling eye
- These small cables minimize waste, optimize cable management, speed deployment, improve flexibility and manageability
Specifications
Specifications
Panduit - FXTRL7N7NYNM026 - Specifications
| Connector Type | Mpo Female - Mpo Female |
|---|---|
| Fiber Type | Om3 |
| Length | 26 M | 85.3 Ft. |
| Number Of Fibers | 12 Fiber |
| Type | Trunk Cables |
| UNSPSC Code | 26121650 |
| Fiber Type | OM3 |
| Number of Fibers | 12 |
| Connector 1 Type | PanMPO Female |
| Connector 2 Type | PanMPO Female |
| Flammability Rating | LSZH |
| Maximum Connector Insertion Loss (dB) | 0.5 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 85.3 |
| Overall Length (m) | 26 |
| Standards Met | Meets or exceeds TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, RoHS Compliant |
| Part Features | These small cables minimize waste, optimize cable management, speed deployment, and improve flexibility and manageability. |
| Pricing Category 1 | FB |
| Pricing Category 2 | FB7 |
| UPC | 07498387089 |
Panduit - FXTRL7N7NYNM026 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 9001.10.0085 |
Documents and Downloads
Documents and Downloads
- Panduit FXTRL7N7NYNM026 Specification Sheet
- Panduit FXTRL7N7NYNM026 Technical References
- Panduit FXTRL7N7NYNM026 Installation Documents
- Panduit FXTRL7N7NYNM026 Flyers
- Panduit FXTRL7N7NYNM026 Video 1
- Panduit FXTRL7N7NYNM026 Specification Sheets
- Panduit FXTRL7N7NYNM026 Technical References
- Panduit FXTRL7N7NYNM026 Video 2
- Panduit FXTRL7N7NYNM026 RoHS Statement
