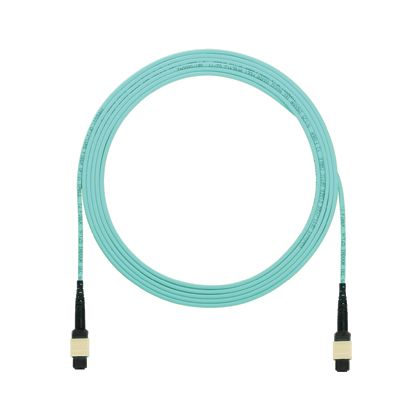

Panduit FXTRP5N5NANF034 | Interconnect Cable Assembly
Description
Description
OM3 12 fiber, interconnect cable assembly, plenum (OFNP) rated, MPO female to MPO female, Method A Std IL, with no pulling eye 34 ft
MPO Interconnect Round Cable Assemblies are pre-terminated 12-fiber cable assemblies that are used in high-density network applications. These interconnect round cable assemblies are used with pre-terminated cassettes in main and horizontal cabling distribution areas. The QuickNet System meets the demands of Gigabit Ethernet, 10 Gb Ethernet and high speed Fiber Channel systems while maintaining compatibility with Ethernet. The high-density modular design fits into rack mount fiber cassette enclosures to ensure efficient use of space and rapid network deployment.
Panduit QuickNet Interconnect Fiber Cable Assembly, Multi-Mode Round, 12 Fibers, 34 ft Length, MPO Female Connector, 50 um Core Dimension, 125 um Clad Dimension, 3.5/1.5 dB at 850/1300 nm Attenuation, Plenum, OM3, Aqua, 0 to 70 deg C
Panduit - FXTRP5N5NANF034 - Features
- 100% performance tested for wire map, next and return loss
- Centered de-embedded plug
- Integral pair manager
- Patented tangle free latch
- Robust construction
- These small cables minimize waste, optimize cable management, speed deployment and improve flexibility and manageability
Specifications
Specifications
Panduit - FXTRP5N5NANF034 - Specifications
| UNSPSC Code | 26121650 |
|---|---|
| Fiber Type | OM3 |
| Number of Fibers | 12 |
| Connector 1 Type | MPO Female |
| Connector 2 Type | MPO Female |
| Flammability Rating | Plenum |
| Maximum Connector Insertion Loss (dB) | 0.5 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 34 |
| Overall Length (m) | 10.36 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.12 |
| Outer Diameter (mm) | 3 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 40 |
| Maximum Installation Temperature (°F) | 104 |
| Minimum Installation Temperature (°F) | 32 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
| Environment | Indoor |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1. RoHS Compliant |
| Application | Allows system designers to tailor configuration and reach to application requirements; to minimize waste, optimize cable management, speed deployment, and improve flexibility and manageability for lower installation costs. |
| Product Type | Interconnect Cable Assembly |
| Boot Color | Black |
| Sub Brand | QuickNet |
| Part Features | These small cables minimize waste, optimize cable management, speed deployment, and improve flexibility and manageability. |
| UPC | 07498389620 |
Panduit - FXTRP5N5NANF034 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 9001.10.0085 |
