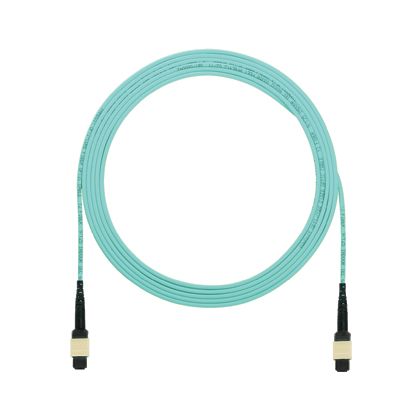

Panduit FXTRP6N6NANF020 | Interconnect Cable Assembly
Regular price
$443.33
Unit price
Brand: Panduit
|
SKU:
687974
Regular price
$443.33
Unit price
Description
Description
Panduit FXTRP6N6NANF020 | Interconnect Cable Assembly
OM3 12 fiber, interconnect cable assembly, plenum (OFNP) rated, MPO male to MPO male, Method A Std IL with no pulling eye, Aqua, 20 ft
Panduit QuickNet Interconnect Cable Assembly, 12-Fiber Round Multi-Mode OM3, MPO Male End A, MPO Male End B, 20 ft Length, Plenum, Aqua
Panduit - FXTRP6N6NANF020 - Features
- 100% performance tested
- Documented metrics
- Lifetime traceability
- Metallic continuity element
- Minimize waste
- Optimize cable management
- Speed deployment, improve flexibility and manageability
Specifications
Specifications
Panduit - FXTRP6N6NANF020 - Specifications
| Connector Type | Mpo Male - Mpo Male |
|---|---|
| Fiber Type | Om3 |
| Length | 20 Ft. | 6.1 M |
| Number Of Fibers | 12 Fiber |
| Type | Trunk Cables |
| UNSPSC Code | 26121650 |
| Fiber Type | OM3 |
| Number of Fibers | 12 |
| Connector 1 Type | MPO Male |
| Connector 2 Type | MPO Male |
| Flammability Rating | Plenum |
| Maximum Connector Insertion Loss (dB) | 0.5 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 20 |
| Overall Length (m) | 6.09 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.11811 |
| Outer Diameter (mm) | 3 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 40 |
| Maximum Installation Temperature (°F) | 104 |
| Minimum Installation Temperature (°F) | 32 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
| Environment | Indoor |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1RoHS Compliant |
| Application | Allows system designers to tailor configuration and reach to application requirements; to minimize waste, optimize cable management, speed deployment, and improve flexibility and manageability for lower installation costs. |
| Product Type | Interconnect Cable Assembly |
| Boot Color | Black |
| Sub Brand | QuickNet |
| Part Features | These small cables minimize waste, optimize cable management, speed deployment, and improve flexibility and manageability. |
| UPC | 07498389849 |
Panduit - FXTRP6N6NANF020 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 9001.10.0085 |
