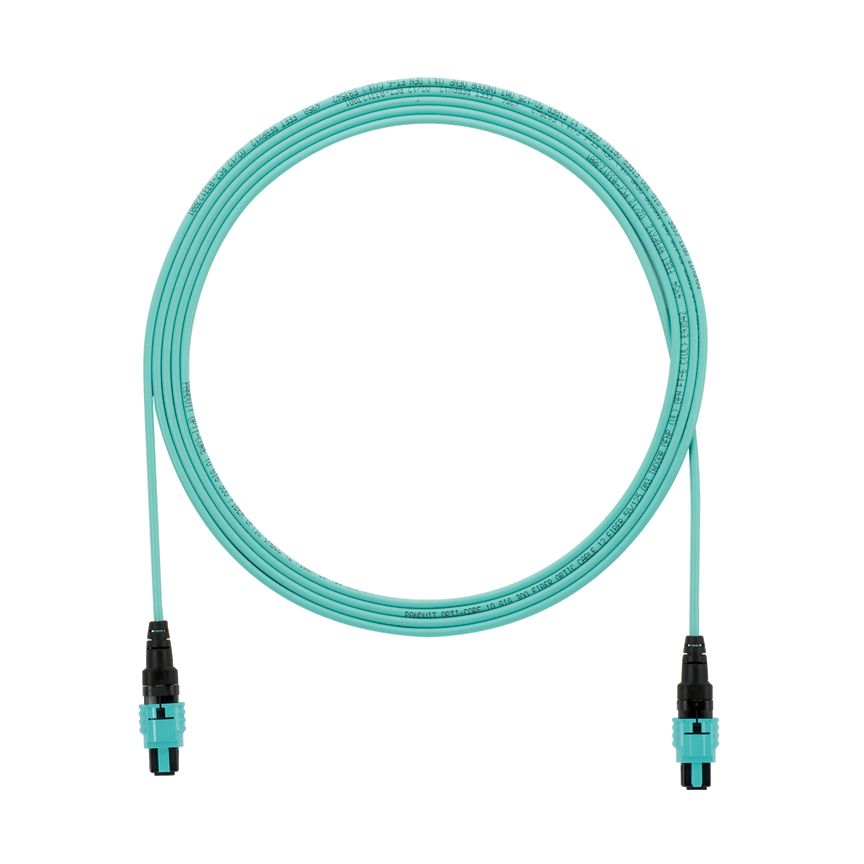

Panduit FXTRP7N7NANF065 | Interconnect Cable Assembly
OM3 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Std IL with no pulling eye, Aqua, 65 ft
Panduit - FXTRP7N7NANF065 - Features
- These small cables minimize waste, optimize cable management, speed deployment and improve flexibility and manageability
- Performance/construction - standard IL/standard fan out (singlemode)
- 12 fibers
Specifications
Specifications
Panduit - FXTRP7N7NANF065 - Specifications
| Fiber Type | OM3 |
|---|---|
| Number of Fibers | 12 |
| Connector 1 Type | PanMPO Female |
| Connector 2 Type | PanMPO Female |
| Flammability Rating | Plenum |
| Maximum Connector Insertion Loss (dB) | 0.5 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 65 |
| Overall Length (m) | 19.81 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.11811 |
| Outer Diameter (mm) | 3 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Installation Temperature (°C) | 40 |
| Maximum Installation Temperature (°F) | 104 |
| Minimum Installation Temperature (°F) | 32 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
| Environment | Indoor |
| Standards Met | Meets or exceeds TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, RoHS Compliant |
| Application | Interconnect cables are small in diameter, extremely flexible and intended for shorter cable runs. These small cables minimize waste, optimize cable management, speed deployment, and improve flexibility and manageability. |
| Product Type | Interconnect Cable Assembly |
| Boot Color | Black |
| Sub Brand | QuickNet |
| Part Features | These small cables minimize waste, optimize cable management, speed deployment, and improve flexibility and manageability. |
| UPC | 07498357072 |
