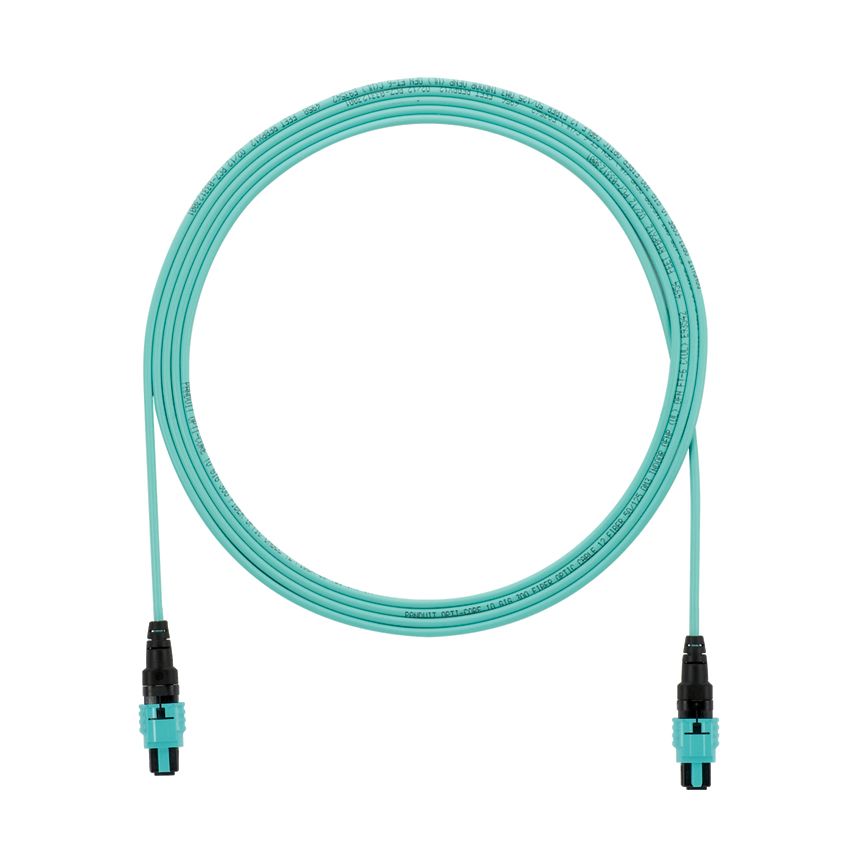

Panduit FXTRP7N7NANF088 | Interconnect Cable Assembly | UPC - 07498...
Regular price
$360.55
Unit price
Brand: Panduit
|
SKU:
688111
Regular price
$360.55
Unit price
Description
Description
OM3 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Std IL with no pulling eye, Aqua, 88 ft
Panduit FXTRP7N7NANF088 Key Specs
| Fiber Type | OM3 |
| Number of Fibers | 12 |
| Connector 1 Type | PanMPO Female |
| Connector 2 Type | PanMPO Female |
| Flammability Rating | Plenum |
| Maximum Connector Insertion Loss (dB) | 0.5 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 88 |
| Overall Length (m) | 26.82 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.11811 |
| Outer Diameter (mm) | 3 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Installation Temperature (°C) | 40 |
| Maximum Installation Temperature (°F) | 104 |
| Minimum Installation Temperature (°F) | 32 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
| Environment | Indoor |
| Standards Met | Meets or exceeds TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, RoHS Compliant |
| Application | Interconnect cables are small in diameter, extremely flexible and intended for shorter cable runs. These small cables minimize waste, optimize cable management, speed deployment, and improve flexibility and manageability. |
| Product Type | Interconnect Cable Assembly |
| Boot Color | Black |
| Sub Brand | QuickNet |
| Part Features | These small cables minimize waste, optimize cable management, speed deployment, and improve flexibility and manageability. |
Panduit FXTRP7N7NANF088 Data Sheets
| Part Drawings | QuickNet PanMPO Round Interconnect Cable Assemblies: 10F093BF-DC | Download and View |
| Installation Documents | Panduit MPO Connectors Polarity Changeover: FBPANMPOFS041--REVA-ENG | Download and View |
| Videos | PanMPO Connector | Download and View |
| Technical References | Understanding the use of the PanMPO when testing 40GBASE-SR4 links: FBTR114--WW-ENG | Download and View |
| Technical References | Understanding the use of the PanMPO when testing 10GBASE-SR and 40GBASE-SR4 channels: FBTR115--WW-ENG | Download and View |
| Videos | PanMPO Migration | Download and View |
