Panduit FXTRP7NQSONF003 | QuickNet™ PanMPO™ Female to LC Push-Pull ...
Description
Description

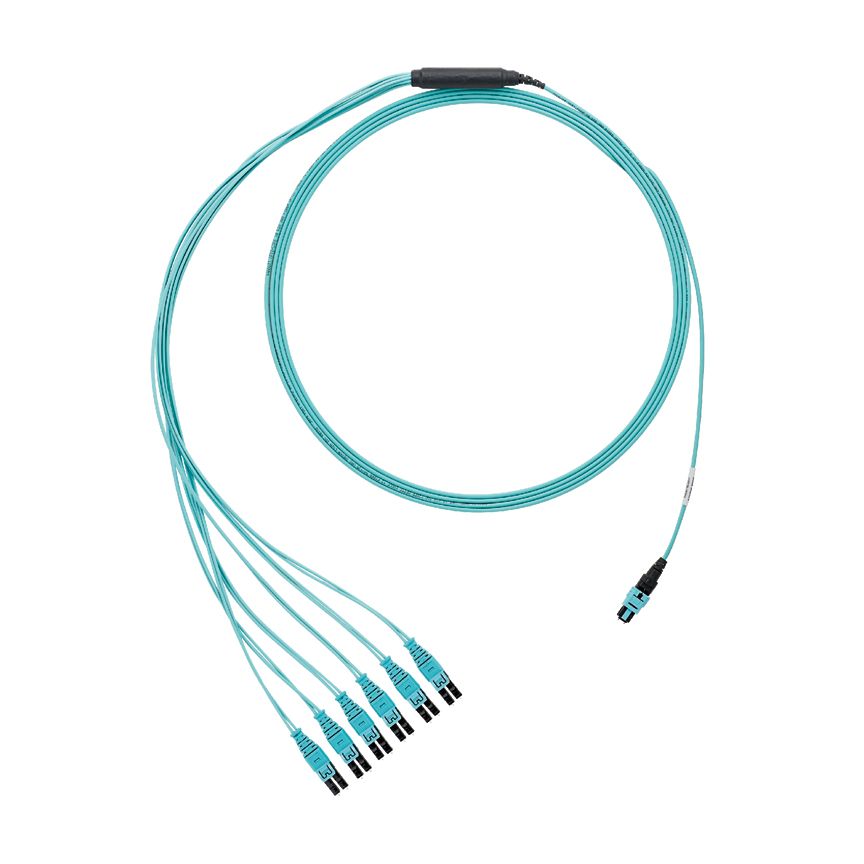

OM3, 12-fiber, harness cable assembly, plenum rated, Female MPO to LC duplex with 61cm (24 Inch) equal breakout, Optimized IL, 3 feet
Easily upgrade your data centers with our PanMPO™ female to LC push-pull cable harness. Seamlessly connect your high-density MPO systems to standard LC equipment for flexible network expansions.
OM3, 12-fiber, harness cable assembly, plenum rated, Female MPO to LC duplex with 61cm (24 Inch) equal breakout, Optimized IL, 3 feet
Panduit - FXTRP7NQSONF003 - Features
- Minimize waste
- Optimize cable management
- Speed deployment, improve flexibility and manageability
- Applications: Connect multiple MPO-based infrastructure components to LC-based components, such as LAN switches, servers, patch panels, and zone distribution areas.
Specifications
Specifications
Panduit - FXTRP7NQSONF003 - Specifications
| Connector Type | Mpo - Lc |
|---|---|
| Fiber Type | Om3 |
| Length | 3 Ft. | 0.91 M |
| Number Of Fibers | 12 Fiber |
| Type | Harnesses |
| UNSPSC Code | 26121650 |
| Technical Information | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, TIA/EIA 604-12 (FOCIS-12) and RoHS Compliant |
| Fiber Type | OM3 |
| Number of Fibers | 12 |
| Connector 1 Type | PanMPO™-12 Female |
| Connector 2 Type | LC Duplex Push-Pull |
| Sub Brand | QuickNet™ |
| Overall Length (ft.) | 3 |
| Overall Length (m) | 0.91 |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, TIA/EIA 604-12 (FOCIS-12) and RoHS Compliant |
| Flammability Rating | Plenum (OFNP) |
| Product Type | Harness Cable Assembly |
| Application | Connect multiple MPO-based infrastructure components to LC-based components, such as LAN switches, servers, patch panels, and zone distribution areas. |
| Cable Color | Aqua |
| UPC | 07498308727 |
Panduit - FXTRP7NQSONF003 - Package Information
| UPC | 07498308727 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 0.0273 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.2728 |
