Panduit FXTRP7NQSONF023 | QuickNet Harness Cable Assembly
Regular price
$815.30
Unit price
Brand: Panduit
|
SKU:
656458
Regular price
$815.30
Unit price
Description
Description

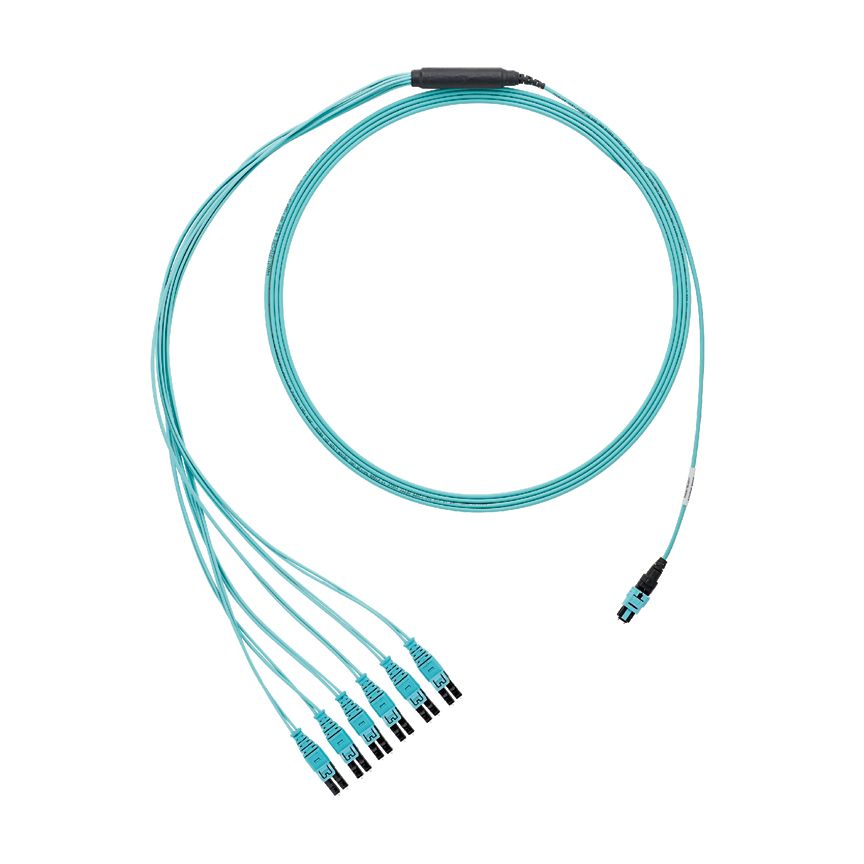

Panduit FXTRP7NQSONF023 | QuickNet Harness Cable Assembly
Easily upgrade your data centers with our PanMPO female to LC push-pull cable harness. Seamlessly connect your high-density MPO systems to standard LC equipment for flexible network expansions.
OM3, 12-fiber, harness cable assembly, plenum rated, Female MPO to LC duplex with 61cm (24 Inch) equal breakout, Optimized IL, 23 feet
FXTRP7NQSONF023 OM3 12-fiber harness cable assembly plenum rated Female MPO to LC duplex with 61cm (24 Inch) equal breakout Optimized IL 23 feet
Specifications
Specifications
Panduit - FXTRP7NQSONF023 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FXTRP7NQSONF023 |
| Connector Type | Mpo - Lc |
| Fiber Type | Om3 |
| Length | 23 Ft. | 7.01 M |
| Number Of Fibers | 12 Fiber |
| Type | Harnesses |
| UNSPSC Code | 26121650 |
| Fiber Type | OM3 |
| Number of Fibers | 12 |
| Connector 1 Type | PanMPO-12 Female |
| Connector 2 Type | LC Duplex Push-Pull |
| Sub Brand | QuickNet |
| Overall Length (ft.) | 23 |
| Overall Length (m) | 7 |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, TIA/EIA 604-12 (FOCIS-12) and RoHS Compliant |
| Flammability Rating | Plenum (OFNP) |
| Product Type | Harness Cable Assembly |
| Application | Connect multiple MPO-based infrastructure components to LC-based components, such as LAN switches, servers, patch panels, and zone distribution areas. |
| Cable Color | Aqua |
| UPC | 07498308813 |
Panduit - FXTRP7NQSONF023 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 9001.10.0085 |
