Panduit FXTRP8NQSONF004 | Harness Cable Assemblies
Regular price
$746.52
Unit price
Brand: Panduit
|
SKU:
656467
Regular price
$746.52
Unit price
Description
Description

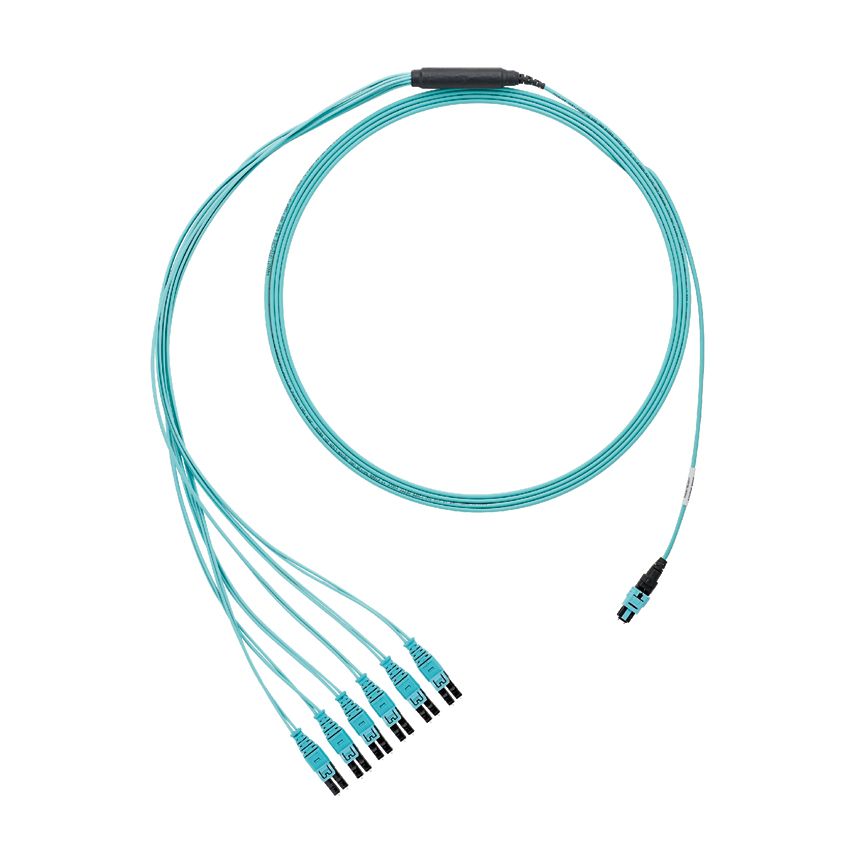

Panduit FXTRP8NQSONF004 | Harness Cable Assemblies
OM3 12-Fiber Round Harness, Plenum, Male PanMPO to LC Push-Pull, 24-inch breakout, Optimized IL - 4 feet
Panduit QuickNet Harness Cable Assembly, Round OM3 OFNP, Multi Mode PanMPO Male End A, Push-Pull Duplex LC End B, 4 ft Length, Fiber, Aqua
Panduit - FXTRP8NQSONF004 - Features
- 1 in bend radius control fittings cables in the raceway will satisfy the minimum 1 in bend radius requirement, preventing the potential degradation of cable performance
- 1-piece hinged design cables can be laid into the raceway, speeding installation and preventing damage to cables
- Adhesive backing full length adhesive strip allows easy tool free installation and works well for temporary mounting
- Full selection of fittings and surface mount boxes wide variety of fittings and surface mount boxes available for various LD raceway applications
- Designed to provide easy and economical solutions for routing any low voltage cable along smooth and clean perimeter walls, baseboards or ceilings
- These small cables minimize waste, optimize cable management, speed deployment and improve flexibility and manageability
- Performance/construction - optimized IL/standard fan out (multimode)
- 24 in connector variant
- 12 fibers
Specifications
Specifications
Panduit - FXTRP8NQSONF004 - Specifications
| Connector Type | Mpo - Lc |
|---|---|
| Fiber Type | Om3 |
| Length | 4 Ft. | 1.22 M |
| Number Of Fibers | 12 Fiber |
| Type | Harnesses |
| UNSPSC Code | 26121650 |
| Fiber Type | Multimode |
| Number of Fibers | 12 |
| Connector 1 Type | Male PanMPO |
| Connector 2 Type | LC Push-Pull |
| Sub Brand | QuickNet |
| Standards Met | TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, RoHS Compliant |
| Flammability Rating | Plenum (OFNP) |
| Product Type | Harness Cable Assemblies |
| Application | Shorter cable runs, high-density network applications and used with pre-terminated cassettes in main and horizontal cabling distribution areas. |
| Cable Color | Aqua |
| Part Features | These small cables minimize waste, optimize cable management, speed deployment, and improve flexibility and manageability. |
| UPC | 07498308916 |
Panduit - FXTRP8NQSONF004 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 9001.10.0085 |
