Panduit FXTRP8NUGSNF062 | QuickNet Harness Cable Assembly
Regular price
$921.58
Unit price
Brand: Panduit
|
SKU:
688482
Regular price
$921.58
Unit price
Description
Description

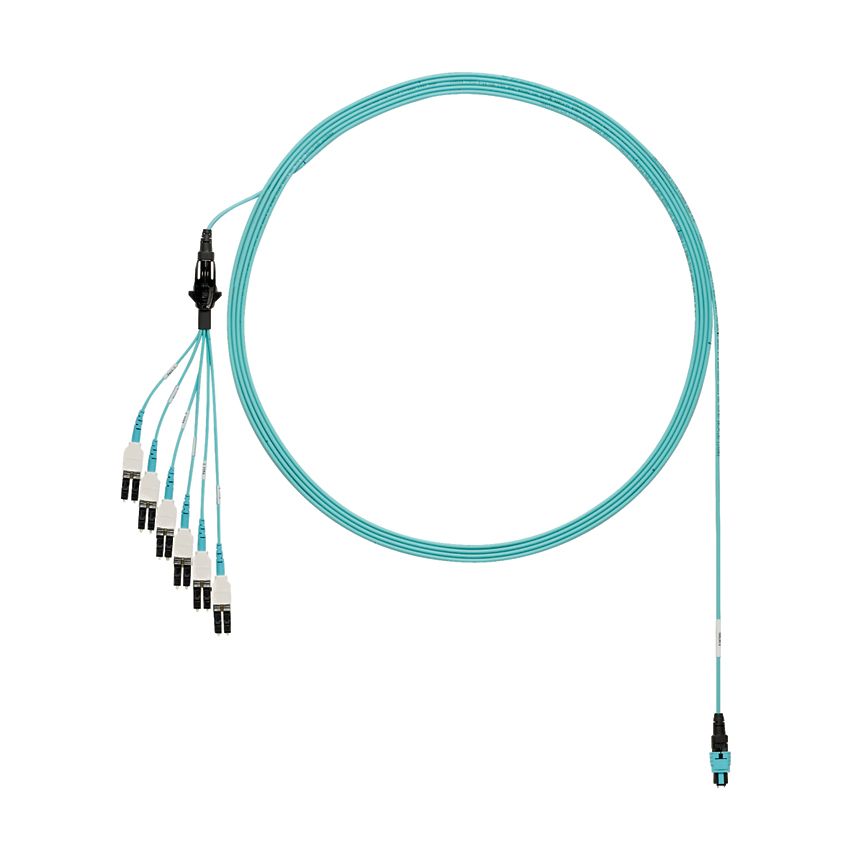

Panduit FXTRP8NUGSNF062 | QuickNet Harness Cable Assembly
Our PanMPO male to LC uniboot staggered pair cable harness simplifies data center upgrades by connecting your MPO switches to LC equipment for scalable network growth and futureproofing design.
OM3 12-fiber round harness cable assembly, plenum (OFNP) rated, PanMPO Male to LC Uniboot Staggered Pair 1 shortest, Std IL.
Panduit QuickNet Harness Cable Assembly, Round OM3 OFNP, Multi Mode PanMPO Male End A, LC Uniboot End B, 62 ft Length, Fiber, Aqua
Panduit - FXTRP8NUGSNF062 - Features
- These small cables minimize waste, optimize cable management, speed deployment and improve flexibility and manageability
- Performance/construction - standard IL/standard fan out (singlemode)
- 12 fibers
Specifications
Specifications
Panduit - FXTRP8NUGSNF062 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FXTRP8NUGSNF062 |
| Connector Type | Mpo - Lc |
| Fiber Type | Om3 |
| Length | 62 Ft. | 18.9 M |
| Number Of Fibers | 12 Fiber |
| Type | Harnesses |
| UNSPSC Code | 26121650 |
| Note | Shorter cable runs, high-density network applications and used with pre-terminated cassettes in main and horizontal cabling distribution areas. |
| Fiber Type | OM3 |
| Number of Fibers | 12 |
| Connector 1 Type | PanMPO-12 Male |
| Connector 2 Type | LC Duplex Uniboot |
| Sub Brand | QuickNet |
| Overall Length (ft.) | 62 |
| Overall Length (m) | 18.9 |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, RoHS Compliant |
| Flammability Rating | Plenum (OFNP) |
| Product Type | Harness Cable Assembly |
| Application | Connect multiple MPO-based infrastructure components to LC-based components, such as LAN switches, servers, patch panels, and zone distribution areas. |
| Cable Color | Aqua |
| Part Features | These small cables minimize waste, optimize cable management, speed deployment, and improve flexibility and manageability. |
| UPC | 07498375620 |
Panduit - FXTRP8NUGSNF062 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 9001.10.0085 |
Documents and Downloads
Documents and Downloads
- Panduit FXTRP8NUGSNF062 Specification Sheet
- Panduit FXTRP8NUGSNF062 Part Drawings
- Panduit FXTRP8NUGSNF062 Installation Documents
- Panduit FXTRP8NUGSNF062 Specification Sheets
- Panduit FXTRP8NUGSNF062 Application Guides
- Panduit FXTRP8NUGSNF062 Installation Documents
- Panduit FXTRP8NUGSNF062 Specification Sheets
- Panduit FXTRP8NUGSNF062 Application Guides
- Panduit FXTRP8NUGSNF062 RoHS Statement
