Panduit FXTRP8NUSSNF040 | Harness Cable Assembly
Description
Description
PanMPO round harness cable assemblies are pre-terminated 12-fiber cable assemblies. The unique design of the PanMPO connector allows for rapid gender change in the field, in support of standards-compliant cable plant migration from 10 Gb cassette-based systems to 40 Gb MPO connector-based parallel optics cable plant. PanMPO harness assemblies meet the demands of 10 Gb Ethernet, higher speed 40 Gb Ethernet, and high-speed ANSI fiber channel systems, while maintaining compliance to the recommendations of TIA-568-C for both serial duplex and parallel optics wiring schemes. LC uniboot connectors reduce cable density on the switch by 40% and allow easy change of polarity.

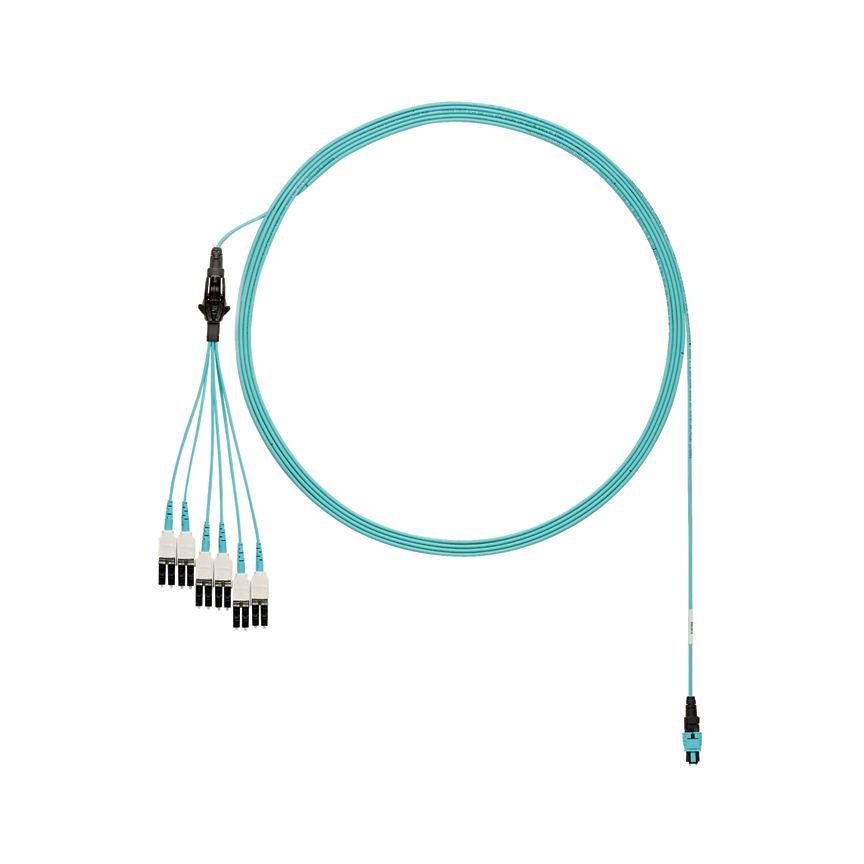

Panduit QuickNet Harness Cable Assembly, OFNP Round 12-OM3 Multimode Standard IL Straight Thru, PanMPO Male End A, LC Uniboot End B, 40 ft Length, 50/125 um Conductor, Aqua
Panduit - FXTRP8NUSSNF040 - Features
- These small cables minimize waste, optimize cable management, speed deployment, improve flexibility and manageability
- Typically used for connectivity between the switch in horizontal cabling
- Installs into QuickNet MPO patch panels on one end and switch ports on the other end
- New cable management transition allows multiple harnesses to attach to each other or be secured to a rack or cabinet with Tak-Ty hook and loop cable ties
Specifications
Specifications
Panduit - FXTRP8NUSSNF040 - Specifications
| Connector Type | Mpo - Lc |
|---|---|
| Fiber Type | Om3 |
| Length | 40 Ft. | 12.19 M |
| Number Of Fibers | 12 Fiber |
| Type | Harnesses |
| UNSPSC Code | 26121650 |
| Fiber Type | OM3 |
| Number of Fibers | 12 |
| Connector 1 Type | PanMPO Male |
| Connector 2 Type | LC Uniboot |
| Maximum Connector Insertion Loss (dB) | 0.5 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 40 |
| Overall Length (m) | 12.2 |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, RoHS Compliant |
| Flammability Rating | Plenum |
| Product Type | Harness Cable Assembly |
| Part Features | These small cables minimize waste, optimize cable management, speed deployment, and improve flexibility and manageability. |
| Pricing Category 1 | FB |
| Pricing Category 2 | FB6 |
| UPC | 07498374256 |
Panduit - FXTRP8NUSSNF040 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 9001.10.0085 |
Documents and Downloads
Documents and Downloads
- Panduit FXTRP8NUSSNF040 Specification Sheet
- Panduit FXTRP8NUSSNF040 Installation Documents
- Panduit FXTRP8NUSSNF040 Part Drawings
- Panduit FXTRP8NUSSNF040 Installation Documents
- Panduit FXTRP8NUSSNF040 Specification Sheets
- Panduit FXTRP8NUSSNF040 Application Guides
- Panduit FXTRP8NUSSNF040 Application Guides
- Panduit FXTRP8NUSSNF040 Specification Sheets
- Panduit FXTRP8NUSSNF040 RoHS Statement
