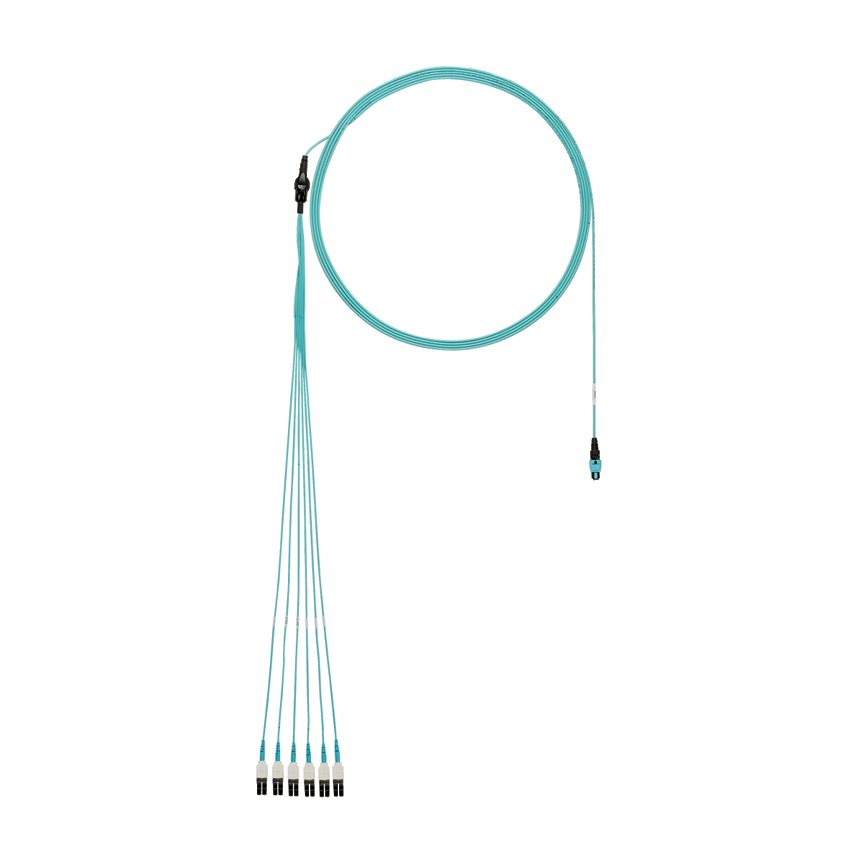

Panduit FXTRP8NUSSNF059 | QuickNet Harness Cable Assembly
Our PanMPO male to LC uniboot equal breakout cable harness provides a cost-effective, space-saving solution to connect MPO switches to standard LC equipment for flexible network expansion.
OM3 12-fiber round harness cable assembly, plenum (OFNP) rated, PanMPO Male to LC Uniboot, 60cm (24 inch) equal breakout, Std. IL.
Panduit QuickNet Harness Cable Assembly, Round OM3 OFNP, Multi Mode PanMPO Male End A, LC Uniboot End B, 59 ft Length, Fiber, Aqua
Panduit - FXTRP8NUSSNF059 - Features
- These small cables minimize waste, optimize cable management, speed deployment and improve flexibility and manageability
- Performance/construction - standard IL/standard fan out (singlemode)
- 24 in connector variant
- 12 fibers
Specifications
Specifications
Panduit - FXTRP8NUSSNF059 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FXTRP8NUSSNF059 |
| Connector Type | Mpo - Lc |
| Fiber Type | Om3 |
| Length | 59 Ft. | 17.98 M |
| Number Of Fibers | 12 Fiber |
| Type | Harnesses |
| UNSPSC Code | 26121650 |
| Note | Shorter cable runs, high-density network applications and used with pre-terminated cassettes in main and horizontal cabling distribution areas. |
| Fiber Type | OM3 |
| Number of Fibers | 12 |
| Connector 1 Type | PanMPO-12 Male |
| Connector 2 Type | LC Duplex Uniboot |
| Sub Brand | QuickNet |
| Overall Length (ft.) | 59 |
| Overall Length (m) | 18 |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, RoHS Compliant |
| Flammability Rating | Plenum (OFNP) |
| Product Type | Harness Cable Assembly |
| Application | Connect multiple MPO-based infrastructure components to LC-based components, such as LAN switches, servers, patch panels, and zone distribution areas. |
| Cable Color | Aqua |
| Part Features | These small cables minimize waste, optimize cable management, speed deployment, and improve flexibility and manageability. |
| UPC | 07498374360 |
Panduit - FXTRP8NUSSNF059 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 9001.10.0085 |
