Panduit FXTYL5E5EAAM020 | QuickNet Trunk Cable Assembly
Regular price
$721.40
Unit price
Brand: Panduit
|
SKU:
9819479-CL
Regular price
$721.40
Unit price
Description
Description

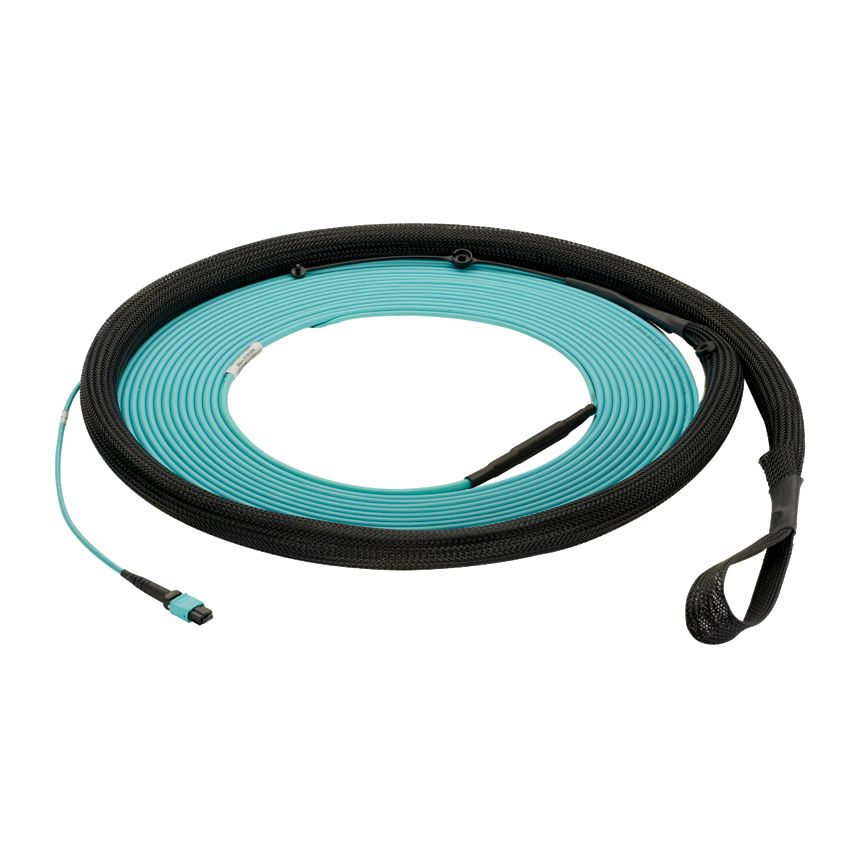

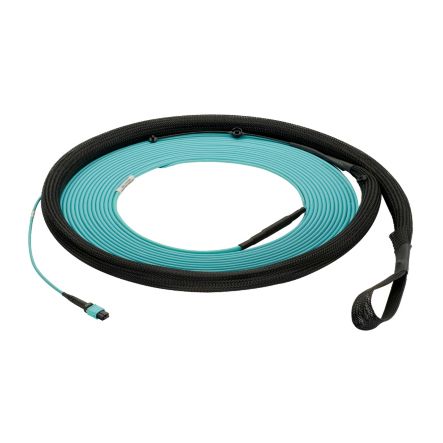

Panduit FXTYL5E5EAAM020 | QuickNet Trunk Cable Assembly
OM3 12-fiber, small diameter indoor trunk cable assembly, low smoke zero halogen rated (LSZH), MPO female to MPO female, Method A Std. IL with pulling eye on end A, 20 meters.
Panduit FXTYL5E5EAAM020 12-fiber Om3 Lszh Trunk Cablempo-mpo Method A Std 20 Mtfxtyl5e5eaam020
Specifications
Specifications
Panduit - FXTYL5E5EAAM020 - Product Categories
- Fiber Optic Systems
- Fiber Optic Trunk Cable Assemblies
Panduit - FXTYL5E5EAAM020 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FXTYL5E5EAAM020 |
| Item Description | QuickNet Trunk Cable Assembly |
| Note | Contact Customer Service for other lengths available |
| Fiber Type | OM3 |
| Number of Fibers | 12 |
| Sub Brand | QuickNet |
| Flammability Rating | LSZH |
| Fiber Diameter (µm) | 50 |
| Overall Length (ft.) | 65.62 |
| Overall Length (m) | 20 |
| Cable Color | Aqua |
| Product Type | Trunk Cable Assembly |
| Standards Met | Meets or exceeds: ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIC/EIA-568-C.1, GR-409-CORE, ICEA S-83-596 RoHS Compliant |
| Application | Allows system designers to tailor configuration, reach and breakout construction to application requirements; to minimize waste, optimize cable management, speed deployment, improve flexibility and manageability for lower installation costs. Small diameter trunk cable assemblies use 30 – 40% less space which is ideal for high cable density applications. |
| Part Features | Minimize waste, optimize cable management, speed deployment, improve flexibility and manageability for lower installation costs. |
Panduit - FXTYL5E5EAAM020 - Package Information
| UPC | 07498323540 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.7685 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
