Panduit FXTYP5EL2SAF290 | Trunk Cable Assembly | UPC - 07498372771
Regular price
$2,048.37
Unit price
Brand: Panduit
|
SKU:
682083
Regular price
$2,048.37
Unit price
Description
Description

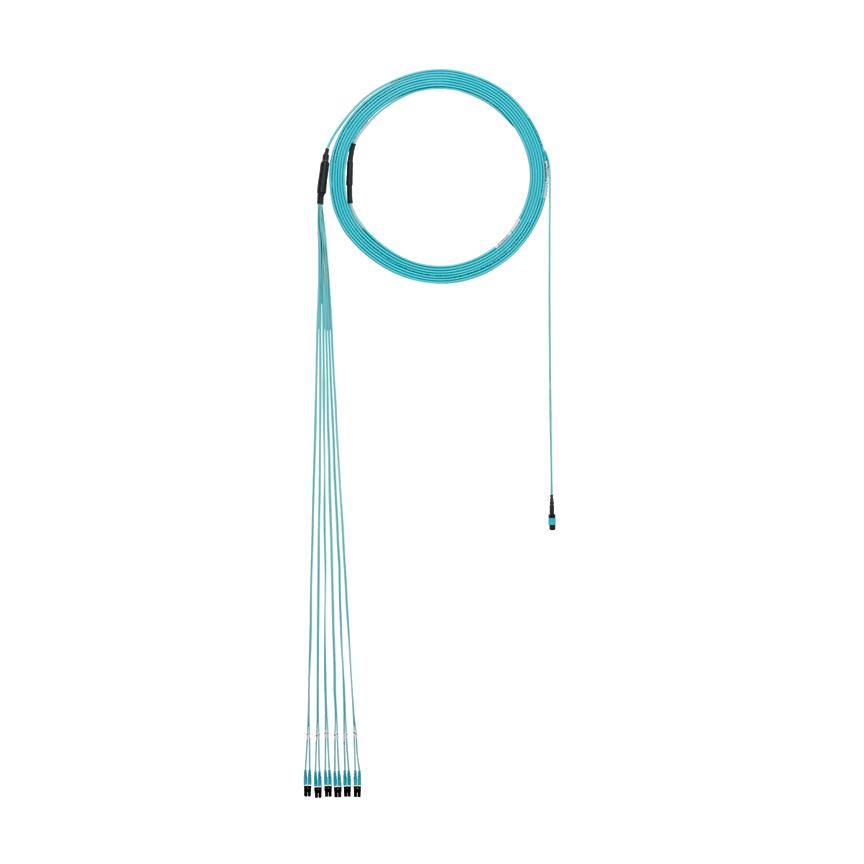

OM3 12-fiber indoor small diameter trunk cable assembly, plenum (OFNP) rated, MPO Female to LC duplex, Std. IL, with a pulling eye on end A.
Panduit FXTYP5EL2SAF290 Key Specs
| Note | Contact Customer Service for other lengths available |
| Sub Brand | QuickNet |
| Environment | Indoor |
| Fiber Type | OM3 |
| Number of Fibers | 12 |
| Overall Length (ft.) | 290 |
| Overall Length (m) | 88.4 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.18 |
| Outer Diameter (mm) | 4.5 |
| Bend Radius (In.) | 1.18 |
| Bend Radius (mm) | 30 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°F) | 32 |
| Data Transfer Rate (Gb/s) | 10 |
| Maximum Installation Tension (lb) | 99 |
| Maximum Installation Tension (N) | 440 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Black |
| Flammability Rating | Plenum |
| Product Type | Trunk Cable Assembly |
| Application | Minimize waste, optimize cable management, speed deployment, improve flexibility and manageability for lower installation costs. |
| Connection Type | MPO Female |
| Standards Met | ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, GR-409-CORE, ICEA S-83-596, RoHS Compliant |
| Part Features | Minimize waste, optimize cable management, speed deployment, improve flexibility and manageability for lower installation costs. |
Panduit FXTYP5EL2SAF290 Data Sheets
| Part Drawings | Small Diameter Trunk Cable: 12F178BM-DC | Download and View |
| Technical References | Transmission Speeds and Max. Channel Length: FBTR122--WW-ENG | Download and View |
| Application Guides | QuickNet Fiber Cabling In Data Center: FBAG01--WW-FRA | Download and View |
| Specification Sheets | Arneses con Cable de Diámetro Reducido para Troncales QuickNet PanMPO y MPO: FBSP94--WW-SPA | Download and View |
| Specification Sheets | QuickNet Small Diameter Trunk Cable Assemblies OFNP and LSZH | Download and View |
| Specification Sheets | QuickNet PanMPO and MPO Small Diameter Trunk Cable Assemblies | Download and View |
| Application Guides | Deploying Fiber Cabling in the Data Center | Download and View |
