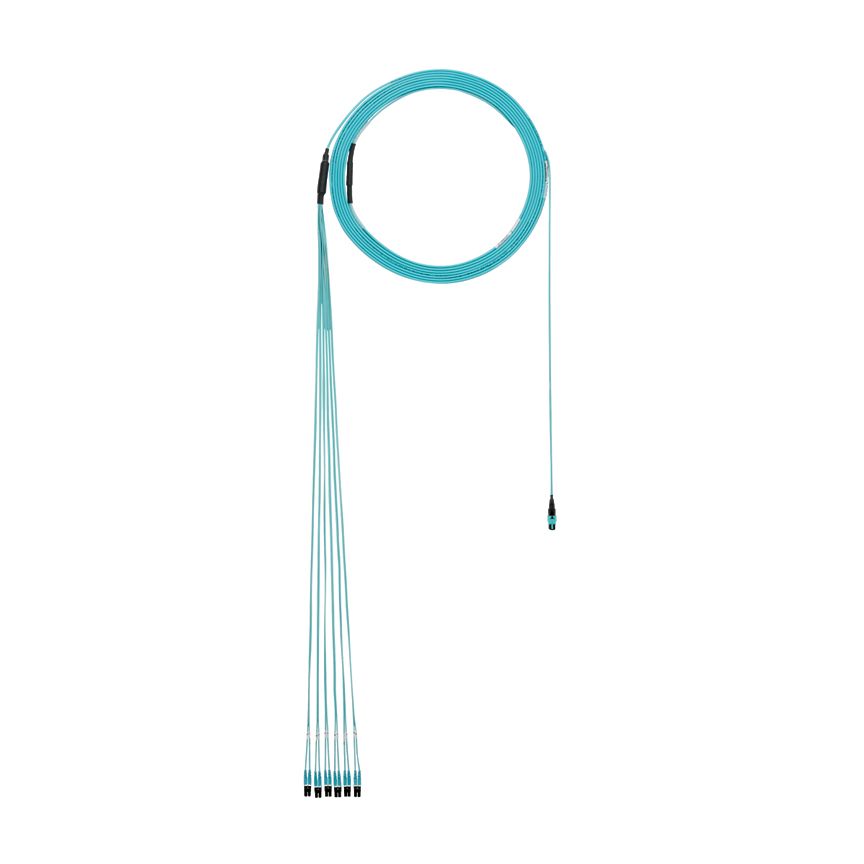

Panduit FXTYP7EL2SAF020 | QuickNet Trunk Cable Assembly
Description
Description
Our indoor PanMPO female to LC duplex trunk cable assembly, with its small diameter design will save data center space and make installation simple. It's sturdy for long-distance connections.
OM3 12-fiber indoor small diameter trunk cable assembly, plenum (OFNP) rated, PanMPO Female to LC duplex, Std. IL. with a pulling eye on end A, Aqua, 20 ft.
PanMPO trunk assemblies are pre-terminated 12-fiber and 24-fiber cable assemblies. The unique design of the PanMPO connector allows for rapid gender and polarity change in the field and enables a seamless, standards compliant cable plant migration from duplex based applications (e.g. 10G Ethernet) to parallel optics based applications (e.g. 40/100G Ethernet).These small Dia trunk cable assemblies optimize cable routing requirements to ensure efficient use of pathway space and significantly reduce installation time and cost. All trunk cable assemblies are factory terminated and tested to deliver verified optical performance and reliability for improved network integrity.
Panduit QuickNet PanMPO Trunk Cable Assembly, 12-Fiber Small Diameter OM3 Multi-Mode, PanMPO Female End A, LC Duplex End B, 20 ft Length, Plenum (OFNP), Aqua
Panduit - FXTYP7EL2SAF020 - Features
- Minimize waste
- Optimize cable management
- Speed deployment, improve flexibility and manageability
Specifications
Specifications
Panduit - FXTYP7EL2SAF020 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FXTYP7EL2SAF020 |
| Connector Type | Mpo Female - Lc |
| Fiber Type | Om3 |
| Length | 20 Ft. | 6.1 M |
| Number Of Fibers | 12 Fiber |
| Type | Trunk Cables |
| UNSPSC Code | 26121650 |
| Note | Contact Customer Service for other lengths available |
| Fiber Type | OM3 |
| Number of Fibers | 12 |
| Connector 2 Type | LC Duplex |
| Sub Brand | QuickNet |
| Flammability Rating | Plenum (OFNP) |
| Fiber Diameter (µm) | 50 |
| Overall Length (ft.) | 20 |
| Overall Length (m) | 6.1 |
| Cable Color | Aqua |
| Product Type | Trunk Cable Assembly |
| Standards Met | Meets or exceeds: ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, GR-409-CORE, ICEA S-83-596 RoHS Compliant |
| Application | Method A and Method B TIA-568-C compliant for 40G/100G parallel optics multimode applications. Allows system designers to tailor configuration, reach and breakout construction to application requirements; to minimize waste, optimize cable management, speed deployment, improve flexibility and manageability for lower installation costs. Small diameter trunk cable assemblies use 30 – 40% less space which is ideal for high cable density applications. |
| Part Features | Minimize waste, optimize cable management, speed deployment, improve flexibility and manageability for lower installation costs. |
| UPC | 07498372773 |
Panduit - FXTYP7EL2SAF020 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 9001.10.0085 |
