Panduit FXTYP7EL2SAF210 | Trunk Cable Assembly | UPC - 07498372793
Regular price
$1,701.41
Unit price
Brand: Panduit
|
SKU:
682178
Regular price
$1,701.41
Unit price
Description
Description

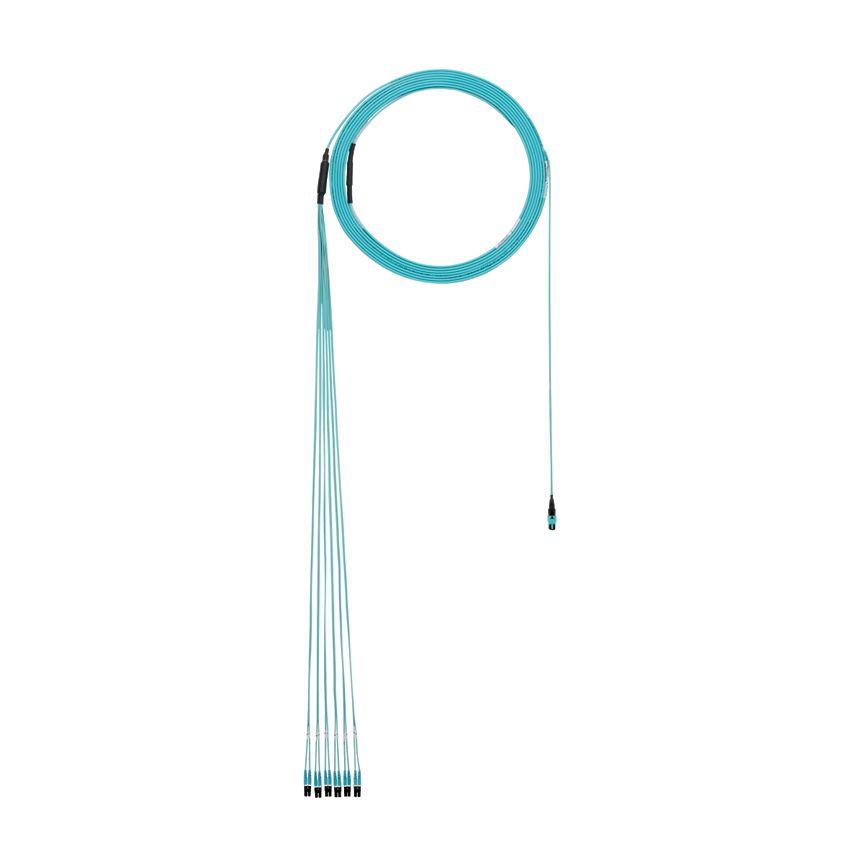

OM3 12-fiber indoor small diameter trunk cable assembly, plenum (OFNP) rated, PanMPO Female to LC duplex, Std. IL, with a pulling eye on end A.
Panduit FXTYP7EL2SAF210 Key Specs
| Note | Contact Customer Service for other lengths available |
| Fiber Type | OM3 |
| Number of Fibers | 12 |
| Connector 1 Type | PanMPO Female |
| Connector 2 Type | LC Duplex |
| Maximum Connector Insertion Loss (dB) | 0.5 |
| Minimum Connector Return Loss (dB) | 30 |
| Sub Brand | QuickNet |
| Tensile Strength (N) | 440 |
| Tensile Strength (kg) | 44.87 |
| Tensile Strength (lb) | 98.92 |
| Environment | Indoor |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°F) | 32 |
| Resistance Properties | Flame-Resistant |
| Standards Met | Meets or exceeds: ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, GR-409-CORE, ICEA S-83-596 RoHS Complaint |
| Flammability Rating | Plenum (OFNP) |
| Product Type | Trunk Cable Assembly |
| Overall Length (ft.) | 210 |
| Overall Length (m) | 64.1 |
| Application | Method A and Method B TIA-568-C compliant for 40G/100G parallel optics multimode applications. Allows system designers to tailor configuration, reach and breakout construction to application requirements; to minimize waste, optimize cable management, speed deployment, improve flexibility and manageability for lower installation costs. Small diameter trunk cable assemblies use 30 – 40% less space which is ideal for high cable density applications. |
| Cable Color | Aqua |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.18 |
| Outer Diameter (mm) | 4.5 |
Panduit FXTYP7EL2SAF210 Data Sheets
| Specification Sheets | QuickNet PanMPO Small Diameter Trunk Cable Assemblies: FBSP79--WW-ENG | Download and View |
| Part Drawings | Small Diameter Trunk Cable: 12F178BN-DC | Download and View |
| Technical References | Transmission Speeds and Max. Channel Length: FBTR122--WW-ENG | Download and View |
| Application Guides | QuickNet Fiber Cabling In Data Center: FBAG01--WW-FRA | Download and View |
| Specification Sheets | Arneses con Cable de Diámetro Reducido para Troncales QuickNet PanMPO y MPO: FBSP94--WW-SPA | Download and View |
| Specification Sheets | QuickNet Small Diameter Trunk Cable Assemblies OFNP and LSZH | Download and View |
| Specification Sheets | QuickNet PanMPO and MPO Small Diameter Trunk Cable Assemblies | Download and View |
