Panduit FZ12D5-5M3Y | Interconnect Cable Assembly
Regular price
$408.25
Unit price
Brand: Panduit
|
SKU:
498930
Regular price
$408.25
Unit price
Description
Description

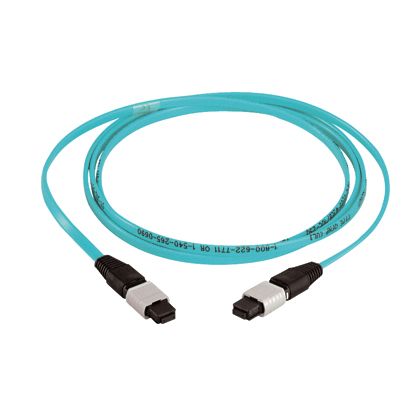

Panduit FZ12D5-5M3Y | Interconnect Cable Assembly
12 Fiber OM4 Flat Ribbon Plenum Rated Female MTP Female MTP Interconnect Cable Assemblies with 5dB IL 3m
Panduit - FZ12D5-5M3Y - Features
- These small cables minimize waste, optimize cable management, speed deployment and improve flexibility and manageability
- Performance/construction - standard IL/standard fan out (singlemode)
- 12 fibers
Specifications
Specifications
Panduit - FZ12D5-5M3Y - Specifications
| Note | Intended for use in fixed installations which are outside the scope of RoHS |
|---|---|
| Fiber Type | OM4 |
| Number of Fibers | 12 |
| Connector 1 Type | MTP* Female |
| Connector 2 Type | MTP* Female |
| Flammability Rating | Plenum |
| Maximum Connector Insertion Loss (dB) | 0.75 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 9.84 |
| Overall Length (m) | 3 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.49 |
| Outer Diameter (mm) | 12.5 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
| Standards Met | Compliant with: TIA/EIA-568-B.3 and ISO/IEC 11801, IEC-61754-7 (International), TIA-604-5 (FOCIS-5), NFPA 262 (OFNP) flame rating |
| Application | Used to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Product Type | Interconnect Cable Assembly |
| Boot Color | Black |
| Sub Brand | QuickNet |
| UPC | 07498320761 |
