Brand: Panduit
|
SKU:
694371
Panduit FZ12D5-5M4Y | Interconnect Cable Assembly | UPC - 07498320762
Regular price
$458.75
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FZ12D5-5M4Y | Interconnect Cable Assembly | UPC - 07498320762
Regular price
$458.75
Unit price
Description
Description

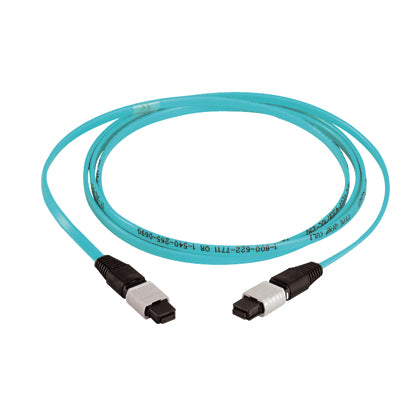

12 Fiber OM4 Flat Ribbon Plenum Rated Female MTP Female MTP Interconnect Cable Assemblies with 5dB IL 4m
Panduit Interconnect Cable Assembly Key Specs
| Note | Intended for use in fixed installations which are outside the scope of RoHS |
| Fiber Type | OM4 |
| Number of Fibers | 12 |
| Connector 1 Type | MTP* Female |
| Connector 2 Type | MTP* Female |
| Flammability Rating | Plenum |
| Maximum Connector Insertion Loss (dB) | 0.75 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 13.12 |
| Overall Length (m) | 4 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.49 |
| Outer Diameter (mm) | 12.5 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
| Standards Met | Compliant with: TIA/EIA-568-B.3 and ISO/IEC 11801, IEC-61754-7 (International), TIA-604-5 (FOCIS-5), NFPA 262 (OFNP) flame rating |
| Application | Used to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Product Type | Interconnect Cable Assembly |
| Boot Color | Black |
| Sub Brand | QuickNet |
Panduit Interconnect Cable Assembly Data Sheets
| Application Guides | QuickNet Fiber Cabling In Data Center: FBAG01--WW-FRA | Download and View |
| Specification Sheets | Opticom® Rack Mount Fiber Enclosures: FBSP119--WW-ENG | Download and View |
| Specification Sheets | Opti-Core® Fiber Optic Patch Cords and Pigtails | Download and View |
Panduit Interconnect Cable Assembly Environmental Information
| Panduit's RoHS Statement | Download and View |
