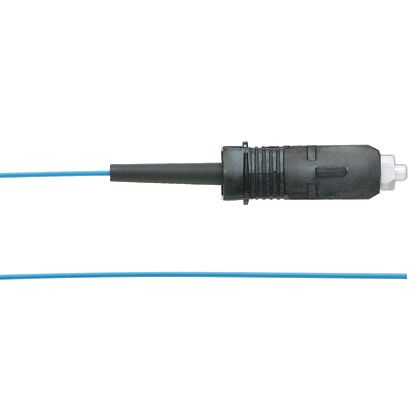

Panduit FZ1BN3NNNSNM002 | OM4 1F 900UM BUFF SC SIM/Pigtail Standard...
Description
Description
Our pigtail set simplifies your fiber optic installation in data centers and telecom rooms with easy fusion splicing and fast deployment.
OM4 1 fiber, 900m buffered fiber, no jacket, SC to pigtail patch cord, Std IL Aqua, 2 meters
Fiber optic patch cords and pigtails provide interconnect and cross connect of applications over installations in entrance facilities, telecommunications rooms, data centers and at the desk. Patch cords support network applications in main, horizontal and equipment distribution areas and are available in riser (OFNR) and low smoke zero halogen (LSZH) rated jacket materials to comply with local cabling ordinances. Pre-terminated fiber optic pigtails support fusion splice field termination applications. Fiber optic patch cords and pigtails are available in OM4, OM3, OM2, OM1 or OS1/ OS2 fiber types to meet the demands of Gigabit Ethernet, 10 Gb Ethernet and high speed fiber channel.
Panduit Opti-Core Fiber Optic Patch Cord, OM4 Riser, 1 Fibers, 6.56 ft Length, SC Simplex to Pigtail Connector, 50 um Core, 125 um Clad, Aqua, 140 deg F
Specifications
Specifications
Panduit - FZ1BN3NNNSNM002 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FZ1BN3NNNSNM002 |
| Connector Type | Sc - Pigtail |
| Fiber Type | Om4 |
| Length | 2 M | 6.56 Ft. |
| Number Of Fibers | 1 Fiber |
| Type | Pigtail |
| UNSPSC Code | 26121650 |
| Fiber Type | OM4 |
| Number of Fibers | 2 |
| Connector 1 Type | SC |
| Sub Brand | Opti-Core |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.62 |
| Outer Diameter (mm) | 1.6 |
| Overall Length (ft.) | 6.5 |
| Overall Length (m) | 2 |
| Cable Color | Aqua |
| Product Type | Fiber Optic Patch Cord |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10) |
| UPC | 07498392326 |
Panduit - FZ1BN3NNNSNM002 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
