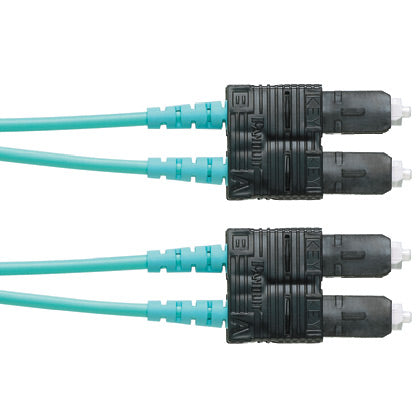

Panduit FZ23LSNSNSNM035 | Fiber Optic Patch Cord
Description
Description
2 fiber OM4 SC duplex to SC duplex patch cord, 3mm jacket, low smoke zero halogen (LSZ) rated, Std IL 35 meters
Fiber optic patch cords and pigtails provide interconnect and cross connect of applications over installations in entrance facilities, telecommunications rooms, data centers and at the desk. Patch cords support network applications in main, horizontal and equipment distribution areas and are available in riser (OFNR) and low smoke zero halogen (LSZH) rated jacket materials to comply with local cabling ordinances. Pre-terminated fiber optic pigtails support fusion splice field termination applications. Fiber optic patch cords and pigtails are available in OM4, OM3, OM2, OM1 or OS1/ OS2 fiber types to meet the demands of Gigabit Ethernet, 10 Gb Ethernet and high speed fiber channel.
Panduit Opti-Core Fiber Optic Patch Cord, 2 Fibers, 114.83 ft Length, SC Duplex to SC Duplex Connector, 50 um Core Dimension, 125 um Clad Dimension, OM4, Aqua
Panduit - FZ23LSNSNSNM035 - Features
- Snaps quickly into Opticom fiber adapter patch panels and enclosures
- Assures flexibility and ease of network deployment and moves adds and changes
- Easy identification of fiber type via adapter colors
- Visually compatible with patch cords and connectivity that also follows the color identification scheme
Specifications
Specifications
Panduit - FZ23LSNSNSNM035 - Specifications
| Connector Type | Sc - Sc |
|---|---|
| Fiber Type | Om4 |
| Length | 35 M | 114.83 Ft. |
| Number Of Fibers | 2 Fiber |
| Type | Patch Cords |
| UNSPSC Code | 26121650 |
| Fiber Type | OM4 |
| Number of Fibers | 2 |
| Connector 1 Type | SC Duplex |
| Connector 2 Type | SC Duplex |
| Flammability Rating | LSZH |
| Maximum Connector Insertion Loss (dB) | 0.25 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 114.83 |
| Overall Length (m) | 35 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.12 |
| Outer Diameter (mm) | 3 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°F) | 32 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
| UPC | 07498382816 |
Panduit - FZ23LSNSNSNM035 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
