Panduit FZ2ELLNLNSNM039 | Fiber Optic Patch Cord
Description
Description
2 fiber OM4 LC duplex to LC duplex patch cord, low smoke zero halogen (LSZH) 16mm jacketed cable, with Std IL 39 meters
Fiber optic patch cords and pigtails provide interconnect and cross connect of applications over installations in entrance facilities, telecommunications rooms, data centers and at the desk. Patch cords support network applications in main, horizontal and equipment distribution areas and are available in riser (OFNR) and low smoke zero halogen (LSZH) rated jacket materials to comply with local cabling ordinances. Pre-terminated fiber optic pigtails support fusion splice field termination applications. Fiber optic patch cords and pigtails are available in OM4, OM3, OM2, OM1 or OS1/ OS2 fiber types to meet the demands of Gigabit Ethernet, 10 Gb Ethernet and high speed fiber channel.

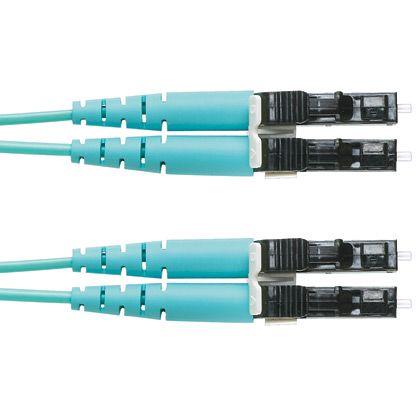

Panduit Opti-Core Fiber Optic Patch Cord, 2 Fibers, 29.52 ft Length, LC Duplex to LC Duplex Connector, 50 um Core Dimension, 125 um Clad Dimension, OM4, Aqua
Panduit - FZ2ELLNLNSNM039 - Features
- Integrated panel retention clips no metal clips to become bent, damaged or lost, clips automatically adjust for FOCIS-3 compliant panel thickness variations for improved mounting
- High glass transition temperature latch material maintains latch integrity/geometry in high temperature environments for improved reliability
- Improved adapter protective cap design maximum protection from contamination; protective cap fully surrounds split sleeve opening
- Short flange design improved modularity and higher density usage
- Q.C. number and split sleeve material laser marked on every adapter assures 100% traceability, quick and easy identification of split sleeve material
- Minimize waste, optimize cable management, speed deployment, improve flexibility and manageability for lower installation cost
Specifications
Specifications
Panduit - FZ2ELLNLNSNM039 - Specifications
| Connector Type | Lc - Lc |
|---|---|
| Fiber Type | Om4 |
| Length | 39 M | 127.95 Ft. |
| Number Of Fibers | 2 Fiber |
| Type | Patch Cords |
| UNSPSC Code | 26121650 |
| Fiber Type | OM4 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | LC Duplex |
| Flammability Rating | LSZH |
| Maximum Connector Insertion Loss (dB) | 0.25 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 127.95 |
| Overall Length (m) | 39 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.062 |
| Outer Diameter (mm) | 1.6 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°F) | 32 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10. RoHS (RoHS) Compliance: Directive 2002/95/EC. |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Product Type | Fiber Optic Patch Cord |
| Sub Brand | Opti-Core |
| UPC | 07498379386 |
Panduit - FZ2ELLNLNSNM039 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
