Panduit FZ2ELLNSNSNM001 | Opti-Core Fiber Optic Patch Cord
Description
Description
Experience reliable, high-speed connections with our configurable connector patch cord. Perfect for data centers, telecom rooms, and offices, with fire-retardant options available.

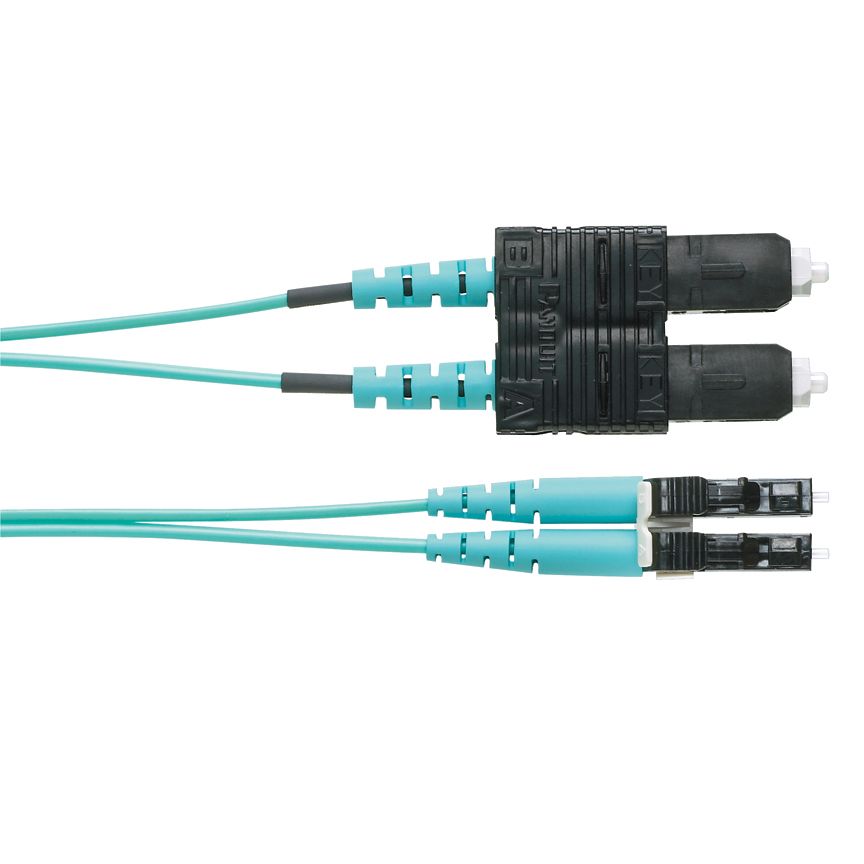

OM4 2-fiber 1.6mm jacket patchcord, Low Smoke Zero Halogen (LSZH) rated, LC duplex to SC duplex, Std. IL.
Panduit Opti-Core Patch Cord, OM4 LSZH Fiber Optic, 2 Fibers, 1 m Length, LC Duplex x SC Duplex Connector, 50 um Core Dimension, 125 um Clad Dimension, 0.25 dB Maximum Connector Insertion/26 dB Minimum Connector Return Attenuation Rating, Aqua Jacket, -20 to 70 deg C
Panduit - FZ2ELLNSNSNM001 - Features
- Performance/construction - standard IL (A-B)
- 1.6 mm cable
Specifications
Specifications
Panduit - FZ2ELLNSNSNM001 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FZ2ELLNSNSNM001 |
| Connector Type | Lc - Sc |
| Fiber Type | Om4 |
| Length | 1 M | 3.28 Ft. |
| Number Of Fibers | 2 Fiber |
| Type | Patch Cords |
| UNSPSC Code | 26121650 |
| Fiber Type | OM4 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | SC Duplex |
| Sub Brand | Opti-Core |
| Flammability Rating | LSZH |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.62 |
| Outer Diameter (mm) | 1.6 |
| Overall Length (ft.) | 3.2 |
| Overall Length (m) | 1 |
| Cable Color | Aqua |
| Product Type | Fiber Optic Patch Cord |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10) |
| UPC | 07498373741 |
Panduit - FZ2ELLNSNSNM001 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
