Panduit FZ2ELQ1Q1NNM022 | Fiber Optic Patch Cord
Description
Description

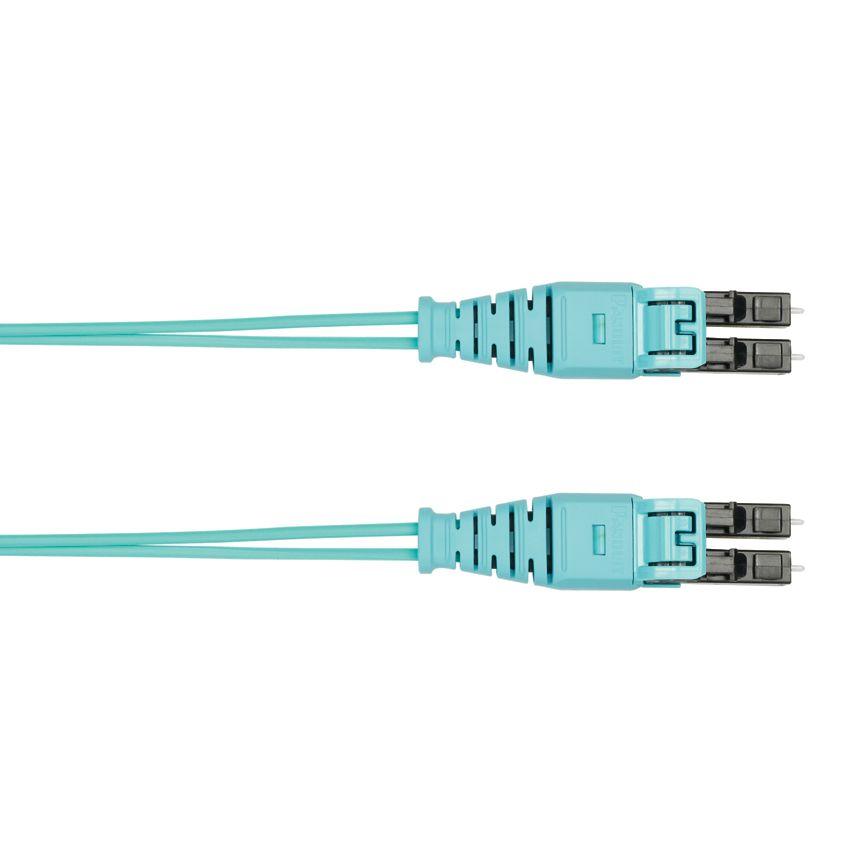

2 fiber OM4 patch cord, LC push pull to LC push pull, 16mm jacket, low smoke zero halogen (LSZH) rated, Ultra IL, 22m
Push-pull LC duplex fiber optic patch cords containing the custom push-pull strain relief boot and duplex clip, allow users easy accessibility when deploying very high density LC patch fields in data center applications. Available in riser (OFNR) and low smoke zero halogen (LSZH) rated jacket materials to comply with local cabling ordinances and OM4, OM3 or OS1/OS2 fiber types to meet the demands of today's highest speed applications.
Panduit Opti-Core Fiber Optic Patch Cord, 2 Fibers, 72.18 ft Length, LC Duplex to LC Duplex Connector, 50 um Core Dimension, 125 um Clad Dimension, OM4, Aqua
Panduit - FZ2ELQ1Q1NNM022 - Features
- Designed to attach coax or telephone cable to the 1/4 or 5/16 in support strand to form the expansion loop and keep equipment and cables clear of pole hardware
- 1-piece construction with integral 1/2 in spacer reduces inventory costs of separate spacer and bands and installs faster to lower installed cost
- Hand install
- Weather-resistant
- Minimize waste, optimize cable management, speed deployment, improve flexibility and manageability for lower installation cost
Specifications
Specifications
Panduit - FZ2ELQ1Q1NNM022 - Specifications
| Connector Type | Lc - Lc |
|---|---|
| Fiber Type | Om4 |
| Length | 22 M | 72.18 Ft. |
| Number Of Fibers | 2 Fiber |
| Type | Patch Cords |
| UNSPSC Code | 26121650 |
| Fiber Type | OM4 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | LC Duplex |
| Flammability Rating | LSZH |
| Maximum Connector Insertion Loss (dB) | 0.1 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (ft.) | 72.18 |
| Overall Length (m) | 22 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (In.) | 0.62 |
| Outer Diameter (mm) | 1.6 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°C) | -10 |
| Minimum Installation Temperature (°F) | 14 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10) |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunication rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Product Type | Fiber Optic Patch Cord |
| Sub Brand | Opti-Core |
| UPC | 07498312305 |
Panduit - FZ2ELQ1Q1NNM022 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
